ASC hydro unit/control unit/support for BMW 3 Series E46 323Ci (2000)

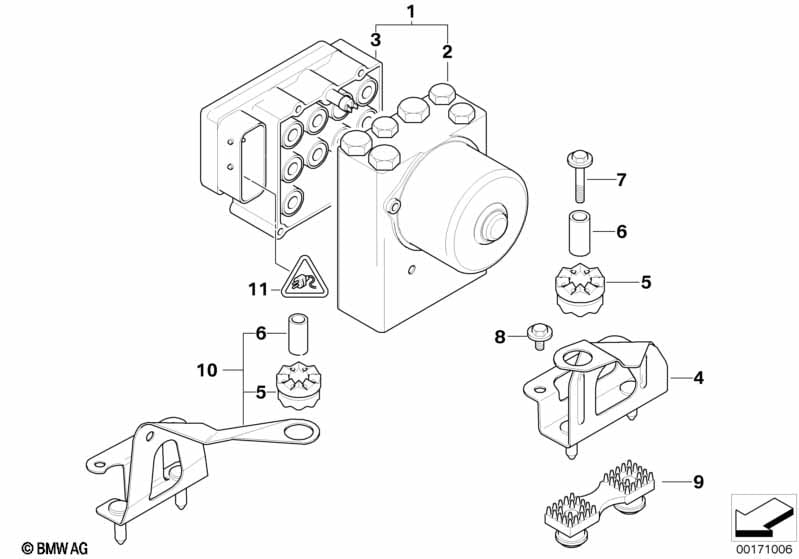

This ASC hydro unit/control unit/support technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hydro unit ASC | 1 | 09/2001 | 34516756287 | $1906.77 | Shop at ECS Tuning | ||||
| 02 | Hydro unit ASC | 1 | 09/2001 | 34516756287 | $1906.77 | Shop at ECS Tuning | ||||
| 02 | Part not available separately | 1 | 09/2001 | 00000000000 | Shop at ECS Tuning | |||||
| 03 | Repair kit, control unit ASC | 1 | 09/2001 | 34516756289 | $708.73 | Shop at ECS Tuning | ||||
| 05 | Rubber Mounting | 1 | 09/2001 | 34511162818 | $2.57 | Shop at ECS Tuning | ||||
| 06 | Spacer sleeve | ZNS3 | 1 | 09/2001 | 07146977328 | $1.21 | Shop at ECS Tuning | |||
| 07 | Hex bolt with washer | M6X35 ZNS3 | 1 | 09/2001 | 07146971298 | $0.82 | Shop at ECS Tuning | |||
| 08 | Hex bolt with washer | M6X12-U1-8.8 | 3 | 09/2001 | 07119904517 | $0.36 | Shop at ECS Tuning | |||
| 09 | Rubber Mounting | 1 | 09/2001 | 34511164650 | $5.13 | Shop at ECS Tuning | ||||
| 10 | Bracket hydro unit | 1 | 09/1999 | 09/2001 | 34506751702 | $6.10 | ENDED | Shop at ECS Tuning | ||
| 11 | Socket housing | 25- POLIG | 1 | 09/2001 | 61138369716 | $7.45 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Terminal socket MQS ELA | 0.2-0.5 MM² SN | 21 | 09/2001 | 61131393704 | $0.23 | Shop at ECS Tuning | |||
| -- | Snap-in receptacle 2.5 with cable | 1,5-2,5 MM² AG | 4 | 09/2001 | 61132466429 | Shop at ECS Tuning | ||||
| -- | Snap-in receptacle 2.5 with cable | 0,5-1,0 MM² SN | 4 | 09/2001 | 61135A07B73 | Shop at ECS Tuning | ||||
| -- | Terminal socket MQS ELA | 0,5-0,75 MM² AG | 21 | 09/2001 | 61136931880 | Shop at ECS Tuning | ||||
