Rear brake pipe DSC for BMW 3 Series E46 320i (2000)

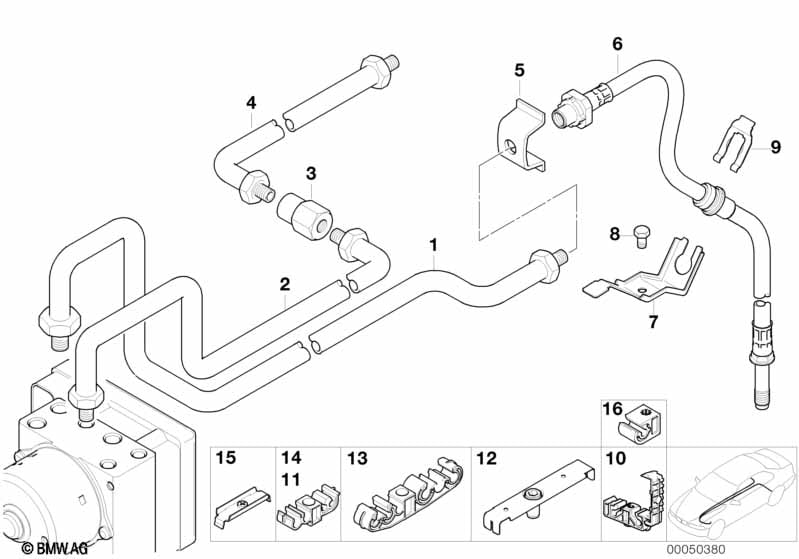

This Rear brake pipe DSC technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pipe | M10/M12-3732MM | 1 | 09/2000 | 34326754884 | Shop at ECS Tuning | ||||
| 02 | Pipe | M10/M10-3857MM | 1 | 09/2000 | 34326754886 | Shop at ECS Tuning | ||||
| 03 | Intermediate piece | M10X1 | 1 | 09/2000 | 34326757282 | $4.08 | Shop at ECS Tuning | |||
| 04 | Pipe | M10/M10-1206MM | 1 | 06/1999 | 09/2000 | 34326766825 | $8.05 | Shop at ECS Tuning | ||
| 05 | Clip | 2 | 09/2000 | 34341163565 | $0.97 | Shop at ECS Tuning | ||||
| 06 | Brake hose rear | 2 | 09/2000 | 34301165174 | $39.55 | Shop at ECS Tuning | ||||
| 07 | Brake pipe bracket | 2 | 09/2000 | 34301164003 | $4.00 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M6X12-U1-8.8 | 2 | 09/2000 | 07119904517 | $0.36 | Shop at ECS Tuning | |||
| 09 | Retaining spring f brake hose | 2 | 09/2000 | 34306771981 | $0.52 | Shop at ECS Tuning | ||||
| 12 | Bracket | 2 | 09/2000 | 16127195327 | $2.12 | Shop at ECS Tuning | ||||
| 13 | Pipe clip | 2 | 09/2000 | 16121183772 | $1.43 | Shop at ECS Tuning | ||||
| 14 | Brake pipe bracket | X | 09/2000 | 34301164005 | $0.68 | Shop at ECS Tuning | ||||
| 15 | Bracket | X | 09/2000 | 34306773697 | $0.62 | Shop at ECS Tuning |
