Hydro unit DSC/control unit/fastening for BMW 3 Series E46 318i (1998)

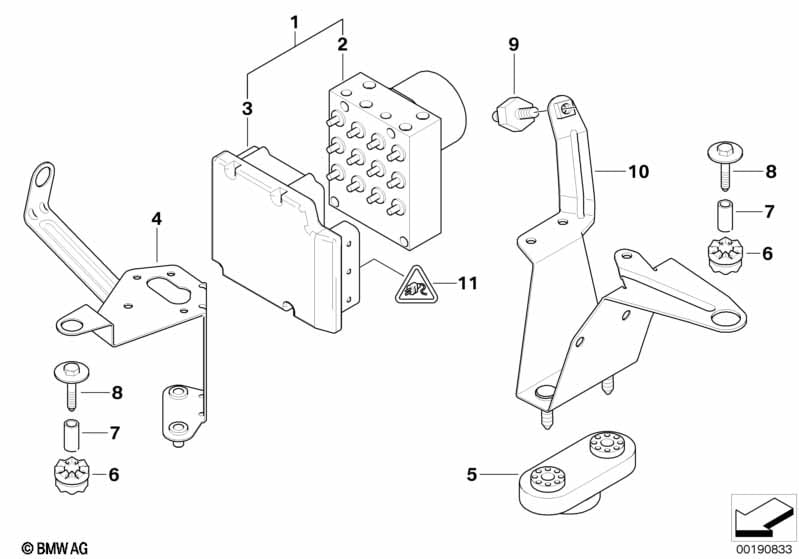

This Hydro unit DSC/control unit/fastening technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hydro unit DSC | 1 | 09/2000 | 34516753601 | $2295.77 | ENDED | Shop at ECS Tuning | |||
| 03 | Repair kit, control unit DSC | 1 | 12/1996 | 09/2000 | 34526753602 | $1105.80 | ENDED | Shop at ECS Tuning | ||
| 04 | Bracket hydro unit | 1 | 09/2000 | 34516750966 | $16.09 | ENDED | Shop at ECS Tuning | |||
| 05 | Rubber Mounting | 1 | 09/2000 | 34511164465 | $13.13 | Shop at ECS Tuning | ||||
| 06 | Rubber Mounting | 2 | 09/2000 | 34511162818 | $2.57 | Shop at ECS Tuning | ||||
| 07 | Spacer sleeve | ZNS3 | 2 | 09/2000 | 34506781284 | $8.16 | Shop at ECS Tuning | |||
| 08 | Hex bolt with washer | M6X35 ZNS3 | 2 | 09/2000 | 07146971298 | $0.82 | Shop at ECS Tuning | |||
| 11 | Socket housing | 47 POL. | 1 | 61136954574 | $7.28 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket contact ELO-Power 5,2x0,63 | 1,0- 2,5 MM² | X | 61138364846 | $0.50 | Shop at ECS Tuning | ||||
| -- | Single conductor seal | 0.5-1.0MM² GN | X | 61138366245 | $0.17 | Shop at ECS Tuning | ||||
| -- | Single conductor seal | 1,0- 2,5 MM² | X | 61138372628 | $0.50 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318i Hydro unit DSC/control unit/fastening?
- This technical diagram illustrates the Hydro unit DSC/control unit/fastening within the Brakes group for the 3 Series E46 318i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Hydro unit DSC (Part #34516753601).
- Which models use the hardware listed in this Hydro unit DSC/control unit/fastening?
- The hardware and components featured in the Hydro unit DSC/control unit/fastening are specific to the 3 Series E46 318i produced during 1998. These technical specifications ensure that parts like the Hydro unit DSC (34516753601) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hydro unit DSC/control unit/fastening assembly?
- Each item in the Hydro unit DSC/control unit/fastening corresponds to the numbered list below the illustration. For the 3 Series E46 318i, you can identify the Hydro unit DSC by locating its position on the schematic, which then links to the official BMW part number 34516753601 for the Brakes section.
