Brake disc/caliper/mounting parts/front for BMW 1502-2002tii 1602 (1972)

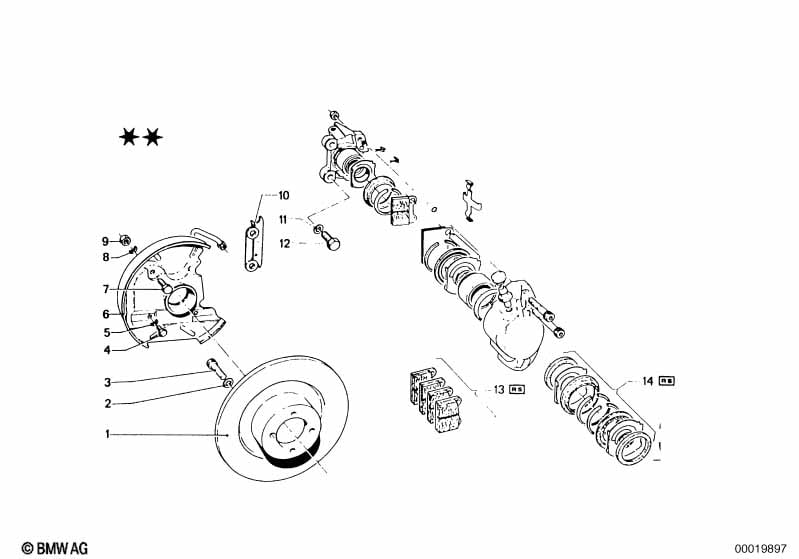

This Brake disc/caliper/mounting parts/front technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1972.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Brake disk | 240X10 | 2 | 34111117422 | $139.45 | Shop at ECS Tuning | ||||
| 03 | Fillister-head screw | M10X25-10.9 PHR | 8 | 07119919994 | $0.84 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M6X12-8.8-ZNNIV | 4 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 05 | Wave washer | B6 | 4 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 06 | Protection plate left | 1 | 34111108702 | $80.52 | Shop at ECS Tuning | |||||
| 06 | Protection plate right | 1 | 34111108703 | $80.52 | ENDED | Shop at ECS Tuning | ||||
| 07 | Screw | 2 | 34112760117 | ENDED | Shop at ECS Tuning | |||||
| 08 | Wave washer | B8 | 2 | 07119932093 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 11 | Wave washer | B12-ZN | 4 | 07119932132 | $0.25 | ENDED | Shop at ECS Tuning | |||
| 12 | Hex bolt | M12X1,5X32 | 4 | 34111118948 | $1.86 | Shop at ECS Tuning | ||||
| 13 | Repair kit, brake pads asbestos-free | TEXTAR T476 | 1 | 34111160175 | $47.25 | Shop at ECS Tuning | ||||
| 14 | Repair set brake caliper | 2 | 34111103269 | $56.62 | Shop at ECS Tuning |
