Brake disc/caliper/mounting parts/front for BMW 1502-2002tii 1502 (1976)

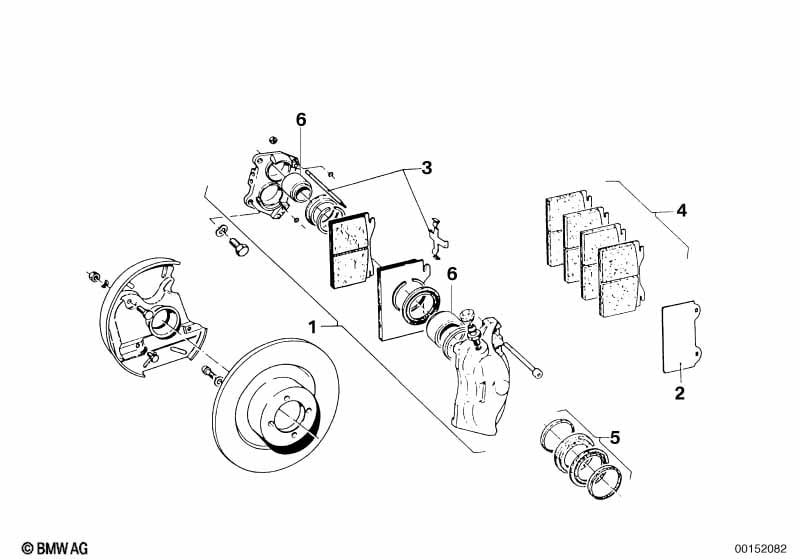

This Brake disc/caliper/mounting parts/front technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1502. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Caliper with out brake pads left | 1 | 34111115930 | ENDED | Shop at ECS Tuning | |||||
| 01 | Caliper with out brake pads right | 1 | 34111115931 | ENDED | Shop at ECS Tuning | |||||
| 02 | Protection plate | 1 | 34111118560 | ENDED | Shop at ECS Tuning | |||||
| 03 | Set mounting parts | 1 | 34111121938 | $10.71 | ENDED | Shop at ECS Tuning | ||||
| 04 | Repair kit, brake pads asbestos-free | TEXTAR T476 | 1 | 34111160175 | $47.25 | Shop at ECS Tuning | ||||
| 05 | Repair set brake caliper | 1 | 34111116618 | $30.33 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 1502 Brake disc/caliper/mounting parts/front?
- This technical diagram illustrates the Brake disc/caliper/mounting parts/front within the Brakes group for the 1502-2002tii 1502 produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the Caliper with out brake pads left (Part #34111115930).
- Which models use the hardware listed in this Brake disc/caliper/mounting parts/front?
- The hardware and components featured in the Brake disc/caliper/mounting parts/front are specific to the 1502-2002tii 1502 produced during 1976. These technical specifications ensure that parts like the Caliper with out brake pads left (34111115930) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Brake disc/caliper/mounting parts/front assembly?
- Each item in the Brake disc/caliper/mounting parts/front corresponds to the numbered list below the illustration. For the 1502-2002tii 1502, you can identify the Caliper with out brake pads left by locating its position on the schematic, which then links to the official BMW part number 34111115930 for the Brakes section.
