Rear wheel brake, drum brake for BMW 1500-2000CS 2000C (1970)

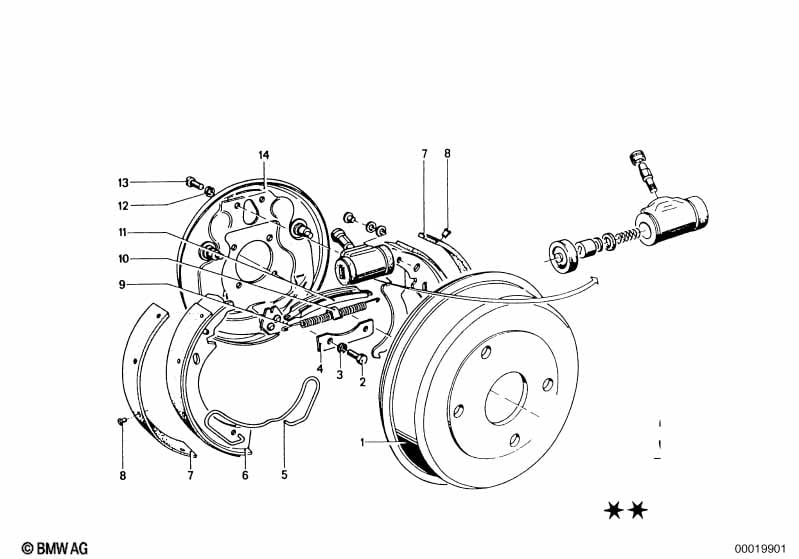

This Rear wheel brake, drum brake technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000C. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 230 / 250 mm | |||||||||
| 01 | Brake drum | D=250 | 2 | 02/1962 | 06/1975 | 34216752373 | $108.83 | Shop at ECS Tuning | ||
| 02 | Hex bolt | M10X16 | 8 | 07119913817 | $0.68 | Shop at ECS Tuning | ||||
| 03 | Wave washer | B10-ZNS3 | 8 | 07119904463 | Shop at ECS Tuning | |||||
| 05 | Tension spring | 2 | 02/1962 | 06/1975 | 34213660186 | $5.53 | Shop at ECS Tuning | |||
| 06 | Brake shoe asbestos-free | 250MM JURID 580 | 2 | 02/1962 | 06/1975 | 34211159588 | $45.52 | Shop at ECS Tuning | ||
| 10 | Bow | 2 | 34213061725 | $9.02 | Shop at ECS Tuning | |||||
| 11 | Thrust rod left | 1 | 34213660190 | $6.02 | Shop at ECS Tuning | |||||
| 11 | Thrust rod right | 1 | 34213660191 | $6.02 | Shop at ECS Tuning | |||||
| 12 | Wave washer | B6 | 4 | 02/1962 | 06/1975 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |
| 13 | Hex bolt | M6X12-8.8-ZNNIV | 4 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 14 | Calliper carrier left | 1 | 02/1962 | 06/1975 | 34213660100 | $154.01 | Shop at ECS Tuning | |||
| 14 | Calliper carrier right | 1 | 02/1962 | 06/1975 | 34213660101 | $154.01 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 2000C Rear wheel brake, drum brake?
- This technical diagram illustrates the Rear wheel brake, drum brake within the Brakes group for the 1500-2000CS 2000C produced during 1970. It provides a detailed exploded view of the components, identifying key parts such as the Brake drum (Part #34216752373).
- Which models use the hardware listed in this Rear wheel brake, drum brake?
- The hardware and components featured in the Rear wheel brake, drum brake are specific to the 1500-2000CS 2000C produced during 1970. These technical specifications ensure that parts like the Brake drum (34216752373) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear wheel brake, drum brake assembly?
- Each item in the Rear wheel brake, drum brake corresponds to the numbered list below the illustration. For the 1500-2000CS 2000C, you can identify the Brake drum by locating its position on the schematic, which then links to the official BMW part number 34216752373 for the Brakes section.
