Rear wheel brake, drum brake for BMW 1502-2002tii 2002 (1973)

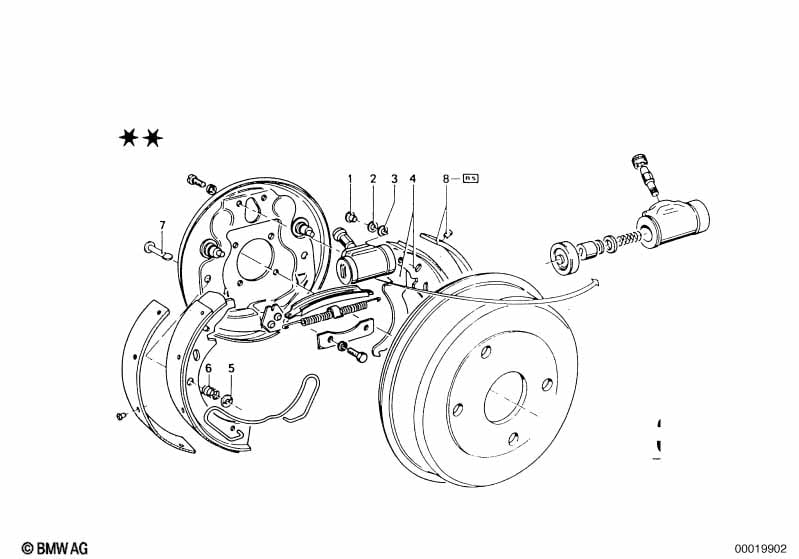

This Rear wheel brake, drum brake technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 230 / 250 mm | |||||||||
| 01 | Rivet | 2 | 34213660164 | $2.25 | Shop at ECS Tuning | |||||
| 02 | Wave washer | 10,5 / 18 | 2 | 34211117860 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Shim | 2 | 34213660163 | $1.27 | Shop at ECS Tuning | |||||
| 04 | Brake shoe asbestos-free left | 230MM JURID 580 | 1 | 09/1967 | 07/1977 | 34211159582 | $37.14 | ENDED | Shop at ECS Tuning | |
| 04 | Brake shoe asbestos-free right | 230MM JURID 580 | 1 | 09/1967 | 07/1977 | 34211159583 | $36.23 | ENDED | Shop at ECS Tuning | |
| 08 | Brake lining asbestos-free | 230MM JURID 580 | 1 | 09/1967 | 07/1977 | 34211159585 | $20.33 | ENDED | Shop at ECS Tuning | |
Notes
- ENDED = the part has been discontinued (no longer available).
