Rear wheel brake, drum brake for BMW 1502-2002tii 2002 (1974)

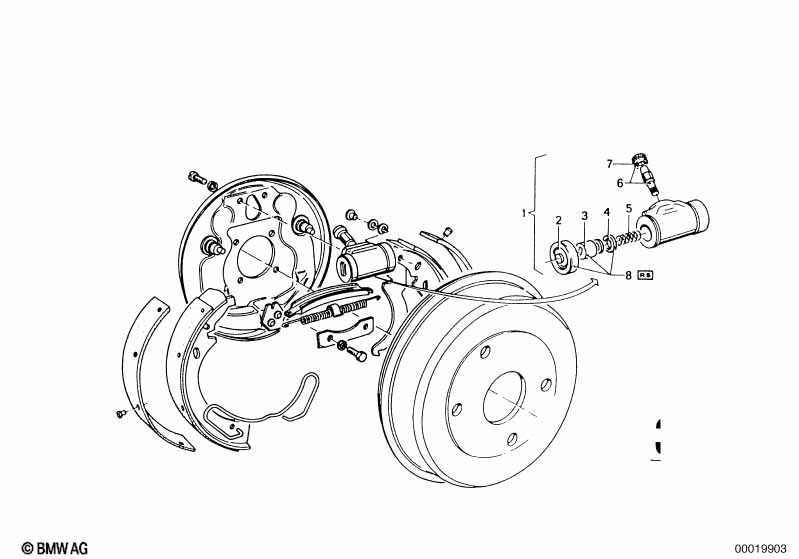

This Rear wheel brake, drum brake technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wheel brake cylinder | D=15,87MM | 2 | 03/1966 | 07/1977 | 34211101760 | $126.82 | ENDED | Shop at ECS Tuning | |
| 06 | Ventilation valve | 2 | 34211115226 | $5.61 | Shop at ECS Tuning | |||||
| 06 | Ventilation valve | 2 | 34219023168 | $8.13 | Shop at ECS Tuning | |||||
| 07 | Dust cap | 2 | 34111153198 | $6.15 | Shop at ECS Tuning | |||||
| 08 | Gasket set brake cylinder | 15,87MM (5/8") | 2 | 03/1966 | 07/1977 | 34211102624 | $45.05 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 2002 Rear wheel brake, drum brake?
- This technical diagram illustrates the Rear wheel brake, drum brake within the Brakes group for the 1502-2002tii 2002 produced during 1974. It provides a detailed exploded view of the components, identifying key parts such as the Wheel brake cylinder (Part #34211101760).
- Which models use the hardware listed in this Rear wheel brake, drum brake?
- The hardware and components featured in the Rear wheel brake, drum brake are specific to the 1502-2002tii 2002 produced during 1974. These technical specifications ensure that parts like the Wheel brake cylinder (34211101760) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear wheel brake, drum brake assembly?
- Each item in the Rear wheel brake, drum brake corresponds to the numbered list below the illustration. For the 1502-2002tii 2002, you can identify the Wheel brake cylinder by locating its position on the schematic, which then links to the official BMW part number 34211101760 for the Brakes section.
