What assembly is shown in the BMW 1502-2002tii 2002Vacuum pipe?

This technical diagram illustrates the Vacuum pipe within the Brakes group for the 1502-2002tii 2002 produced during 1974. It provides a detailed exploded view of the components, identifying key parts such as the non-return valve (Part #34331101720).

Which models use the hardware listed in this Vacuum pipe?

The hardware and components featured in the Vacuum pipe are specific to the 1502-2002tii 2002 produced during 1974. These technical specifications ensure that parts like the non-return valve (34331101720) are correctly matched to the vehicle's structural and mechanical requirements.

How do I find specific parts within the Vacuum pipe assembly?

Each item in the Vacuum pipe corresponds to the numbered list below the illustration. For the 1502-2002tii 2002, you can identify the non-return valve by locating its position on the schematic, which then links to the official BMW part number 34331101720 for the Brakes section.

Vacuum pipe for BMW 1502-2002tii 2002 (1974)

Sign In
Sign Out
Account

Donate Go Ad Free

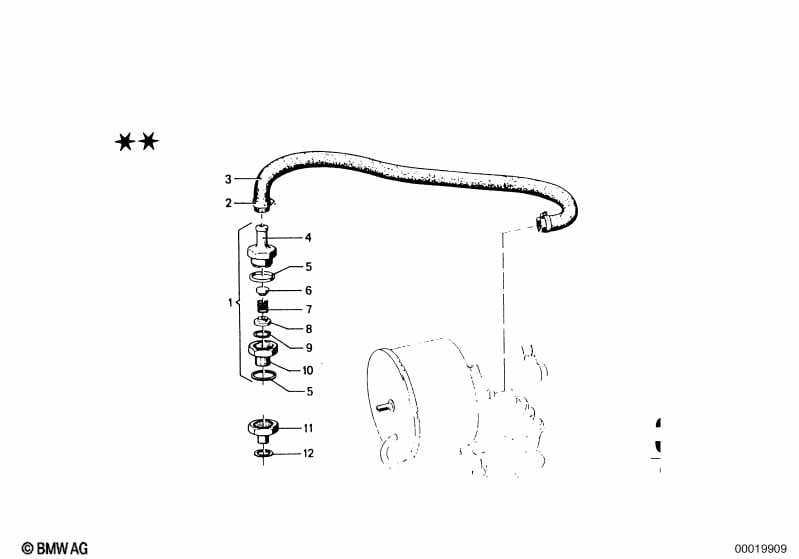

This Vacuum pipe technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.

No.	Description	Supp.	Qty	Part Number	Price	Notes
01	non-return valve		1	34331101720		ENDED	Shop at ECS Tuning
	only applies to
--	Power brake	ATE T 50	X	34331103339		ENDED	Shop at ECS Tuning
02	Hose clamp	L15-19	2	07129952107	$0.93		Shop at ECS Tuning
	only applies to
--	Power brake	ATE T 50	X	34331103339		ENDED	Shop at ECS Tuning
04	Connector		1	34334650182		ENDED	Shop at ECS Tuning
	only applies to
--	Power brake	ATE T 50	X	34331103339		ENDED	Shop at ECS Tuning
05	Gasket ring	A22X27-AL	1	07119963355	$0.36		Shop at ECS Tuning
	only applies to
--	Power brake	ATE T 50	X	34331103339		ENDED	Shop at ECS Tuning
06	Gasket		1	34331102042		ENDED	Shop at ECS Tuning
	only applies to
--	Power brake	ATE T 50	X	34331103339		ENDED	Shop at ECS Tuning
07	Compression spring		1	34331102040		ENDED	Shop at ECS Tuning
	only applies to
--	Power brake	ATE T 50	X	34331103339		ENDED	Shop at ECS Tuning
08	Spring pocket		1	34331102041		ENDED	Shop at ECS Tuning
	only applies to
--	Power brake	ATE T 50	X	34331103339		ENDED	Shop at ECS Tuning
09	Lock Ring	17X1	1	07119934620	$1.29		Shop at ECS Tuning
	only applies to
--	Power brake	ATE T 50	X	34331103339		ENDED	Shop at ECS Tuning
10	Connector		1	34331101562		ENDED	Shop at ECS Tuning
	only applies to
--	Power brake	ATE T 50	X	34331103339		ENDED	Shop at ECS Tuning
11	Connector		1	34334650181	$18.86	ENDED	Shop at ECS Tuning
	only applies to
--	Power brake	ATE T 50	X	34331103339		ENDED	Shop at ECS Tuning
12	Gasket ring	A12X15,5 AL	1	07119963130	$0.09		Shop at ECS Tuning
	only applies to
--	Power brake	ATE T 50	X	34331103339		ENDED	Shop at ECS Tuning

Notes

ENDED = the part has been discontinued (no longer available).

Frequently Asked Questions

What assembly is shown in the BMW 1502-2002tii 2002 Vacuum pipe?: This technical diagram illustrates the Vacuum pipe within the Brakes group for the 1502-2002tii 2002 produced during 1974. It provides a detailed exploded view of the components, identifying key parts such as the non-return valve (Part #34331101720).
Which models use the hardware listed in this Vacuum pipe?: The hardware and components featured in the Vacuum pipe are specific to the 1502-2002tii 2002 produced during 1974. These technical specifications ensure that parts like the non-return valve (34331101720) are correctly matched to the vehicle's structural and mechanical requirements.
How do I find specific parts within the Vacuum pipe assembly?: Each item in the Vacuum pipe corresponds to the numbered list below the illustration. For the 1502-2002tii 2002, you can identify the non-return valve by locating its position on the schematic, which then links to the official BMW part number 34331101720 for the Brakes section.

Vacuum pipe for BMW 1502-2002tii 2002 (1974)
