Expansion tank for BMW 1502-2002tii 1602 (1971)

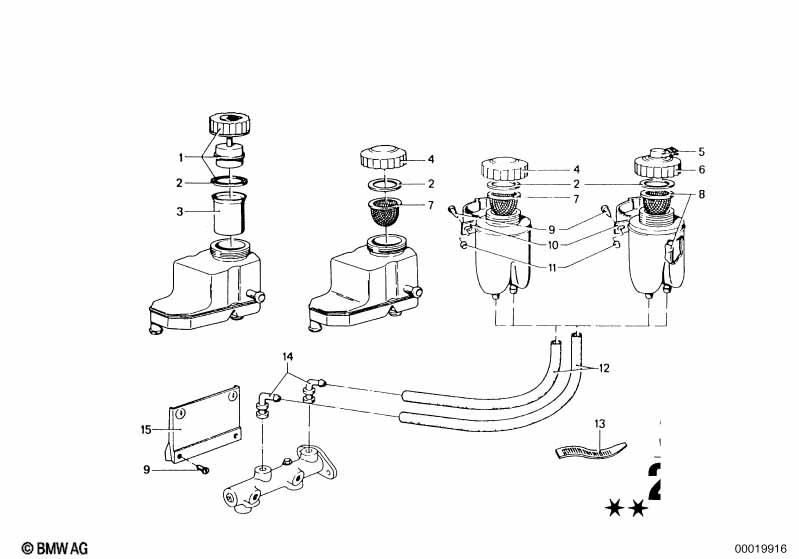

This Expansion tank technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Gasket | 1 | 34321102798 | $2.82 | Shop at ECS Tuning | |||||
| 04 | Cover lid | 1 | 03/1966 | 12/1975 | 34321102797 | $8.15 | Shop at ECS Tuning | |||
| For vehicles with National version Switzerland and National version sweden |
L804A=Yes =Yes |
|||||||||
| 05 | Cover lid | 1 | 03/1966 | 07/1976 | 34321103064 | $27.58 | ENDED | Shop at ECS Tuning | ||
| 06 | Cover lid | 1 | 03/1966 | 07/1976 | 34321103064 | $27.58 | ENDED | Shop at ECS Tuning | ||
| 06 | Cap with warning switch | 1 | 03/1966 | 07/1976 | 34322225602 | $31.31 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Strainer tube | 1 | 03/1966 | 07/1976 | 34321120843 | $6.35 | Shop at ECS Tuning | |||
| 07 | Strainer tube | 1 | 34321102796 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Switzerland and National version sweden |
L804A=Yes =Yes |
|||||||||
| 08 | Strainer with float | 1 | 34321103065 | $23.22 | ENDED | Shop at ECS Tuning | ||||
| 09 | Hex head screw | ST6,3X13-C | 2 | 07119916823 | $0.13 | ENDED | Shop at ECS Tuning | |||
| 10 | Holder | 1 | 03/1966 | 07/1976 | 34314650121 | ENDED | Shop at ECS Tuning | |||
| 11 | Cap | 2 | 51135676199 | $0.79 | Shop at ECS Tuning | |||||
| 12 | Hose | 7.5X13.5 | X | 35006857512 | Shop at ECS Tuning | |||||
| 13 | Cable tie | L=292MM/B=4,8MM | X | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 14 | Connector | 2 | 34321102282 | $4.16 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 1602 Expansion tank?
- This technical diagram illustrates the Expansion tank within the Brakes group for the 1502-2002tii 1602 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Gasket (Part #34321102798).
- Which models use the hardware listed in this Expansion tank?
- The hardware and components featured in the Expansion tank are specific to the 1502-2002tii 1602 produced during 1971. These technical specifications ensure that parts like the Gasket (34321102798) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Expansion tank assembly?
- Each item in the Expansion tank corresponds to the numbered list below the illustration. For the 1502-2002tii 1602, you can identify the Gasket by locating its position on the schematic, which then links to the official BMW part number 34321102798 for the Brakes section.
