Power brake unit depression for BMW 1502-2002tii 1802 (1973)

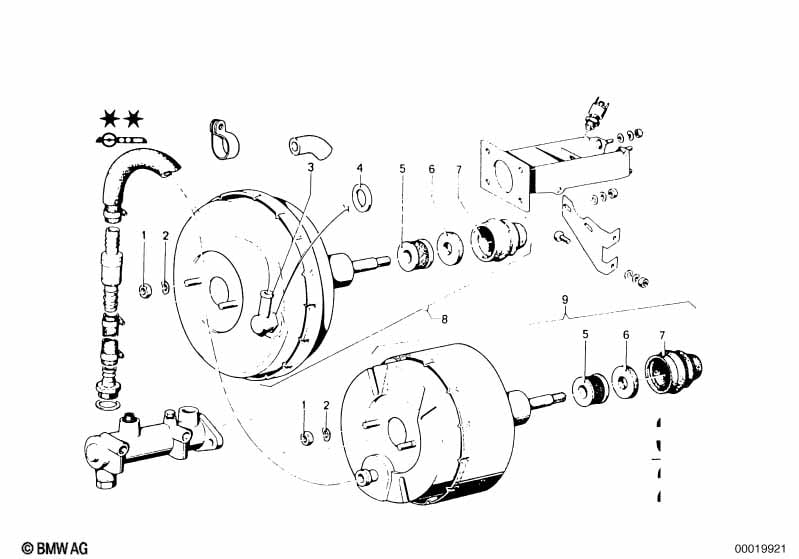

This Power brake unit depression technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1802. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex nut | M8-8-ZNS3 | 2 | 07/1977 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 01 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 02 | Spring washer | B8 | 2 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 03 | Connector | 1 | 34331103261 | $20.43 | ENDED | Shop at ECS Tuning | ||||
| 04 | Gasket ring | 1 | 34331103314 | $3.32 | ENDED | Shop at ECS Tuning | ||||
| 05 | Air cleaner | 1 | 34331113651 | $2.35 | ENDED | Shop at ECS Tuning | ||||
| 06 | Absorber | 1 | 34334650147 | $7.88 | Shop at ECS Tuning | |||||
| 07 | Protection cap | ATE | 1 | 03/1966 | 07/1977 | 34331153317 | $8.45 | Shop at ECS Tuning | ||
| 08 | Power brake | ATE T 51 | 1 | 03/1966 | 07/1977 | 34331113650 | $513.36 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
