Parking brake/control for BMW 1502-2002tii 1602 (1971)

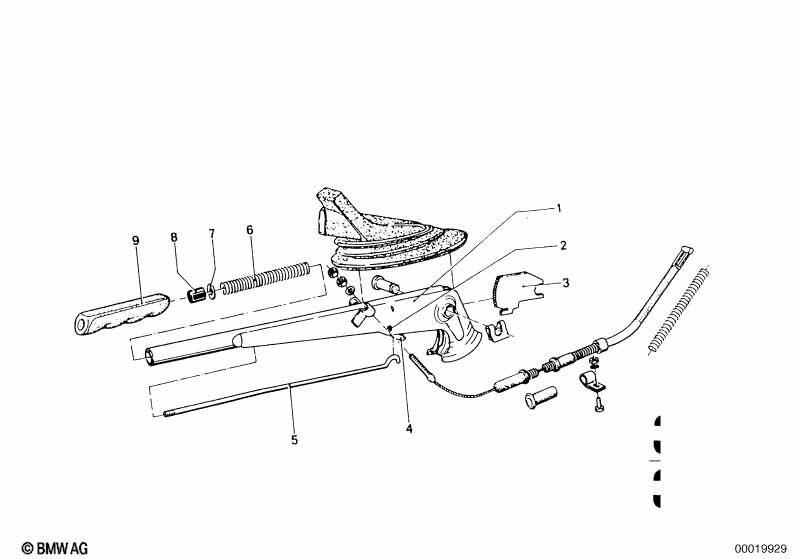

This Parking brake/control technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Handbrake lever | 1 | 34411117325 | $112.85 | Shop at ECS Tuning | |||||
| 02 | Pin | 1 | 34411114413 | $0.57 | Shop at ECS Tuning | |||||
| 03 | Ratched | 1 | 34411151769 | $98.52 | Shop at ECS Tuning | |||||
| 04 | Ratched-pin | 1 | 34411103985 | $61.95 | ENDED | Shop at ECS Tuning | ||||
| 05 | Rod | 1 | 34411152892 | $0.95 | ENDED | Shop at ECS Tuning | ||||
| 06 | Compression spring | 1 | 34411108287 | ENDED | Shop at ECS Tuning | |||||
| 07 | Washer | 8,4 140HV | 1 | 07119931684 | $0.40 | Shop at ECS Tuning | ||||
| 08 | Push-button | 1 | 34411116436 | $1.00 | ENDED | Shop at ECS Tuning | ||||
| 09 | Handle | 1 | 02/1962 | 08/1973 | 34414660109 | ENDED | Shop at ECS Tuning |
