Front brake, circuit 1 for BMW 1500-2000CS 1800 (1971)

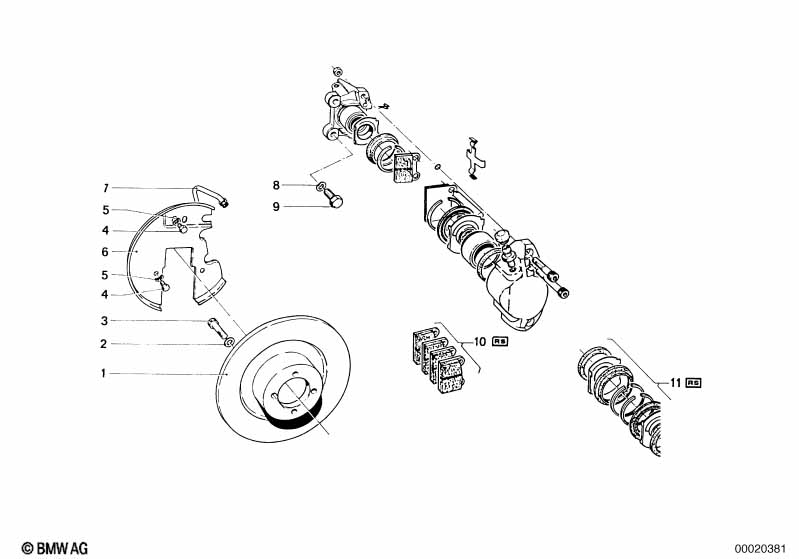

This Front brake, circuit 1 technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Brake disk | 268X10X45MM | 2 | 34112660002 | ENDED | Shop at ECS Tuning | ||||
| 02 | Set spring washer 20 | B10 | 8 | 07509064021 | ENDED | Shop at ECS Tuning | ||||
| 03 | Fillister-head screw | M10X25-10.9 PHR | 8 | 07119919994 | $0.84 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M6X12-8.8-ZNNIV | 8 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 05 | Wave washer | B6 | 8 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 06 | Protection plate | 1 | 34112660120 | ENDED | Shop at ECS Tuning | |||||
| 06 | Protection plate | 1 | 34112660121 | ENDED | Shop at ECS Tuning | |||||
| 08 | Wave washer | B12-ZN | 4 | 07119932132 | $0.25 | ENDED | Shop at ECS Tuning | |||
| 09 | Hex bolt | M12X1,5X32 | 4 | 34111118948 | $1.86 | Shop at ECS Tuning | ||||
| 10 | Repair kit, brake pads asbestos-free | TEXTAR T476 | 1 | 34111160175 | $47.25 | Shop at ECS Tuning | ||||
| 11 | Repair set brake caliper | 2 | 34111103269 | $56.62 | Shop at ECS Tuning |
