Front wheel brake for BMW 1500-2000CS 2000tilux (1968)

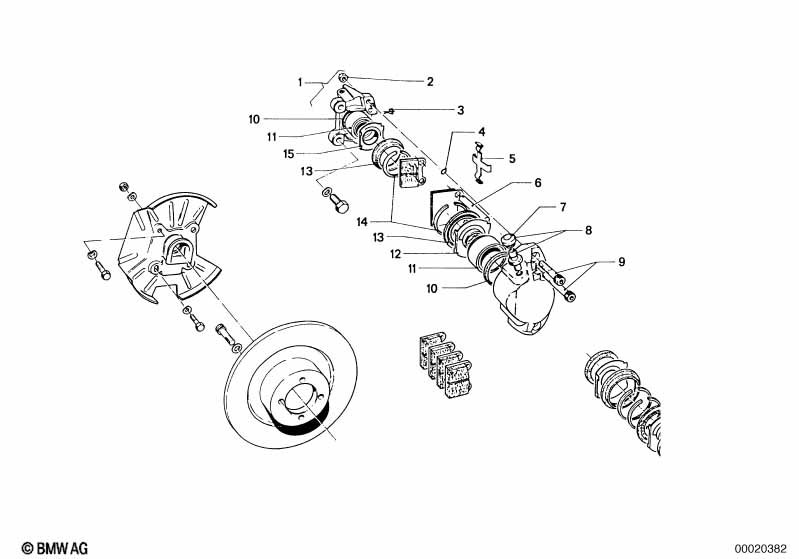

This Front wheel brake technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000tilux. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Brake caliper, left | 1 | 34112660050 | ENDED | Shop at ECS Tuning | |||||
| 01 | Caliper right | 1 | 34112660051 | ENDED | Shop at ECS Tuning | |||||
| 02 | Nut | 4 | 34111108777 | ENDED | Shop at ECS Tuning | |||||
| 08 | Ventilation valve | 2 | 34111103236 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 2000tilux Front wheel brake?
- This technical diagram illustrates the Front wheel brake within the Brakes group for the 1500-2000CS 2000tilux produced during 1968. It provides a detailed exploded view of the components, identifying key parts such as the Brake caliper, left (Part #34112660050).
- Which models use the hardware listed in this Front wheel brake?
- The hardware and components featured in the Front wheel brake are specific to the 1500-2000CS 2000tilux produced during 1968. These technical specifications ensure that parts like the Brake caliper, left (34112660050) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front wheel brake assembly?
- Each item in the Front wheel brake corresponds to the numbered list below the illustration. For the 1500-2000CS 2000tilux, you can identify the Brake caliper, left by locating its position on the schematic, which then links to the official BMW part number 34112660050 for the Brakes section.
