Expansion tank for BMW 1500-2000CS 2000C (1970)

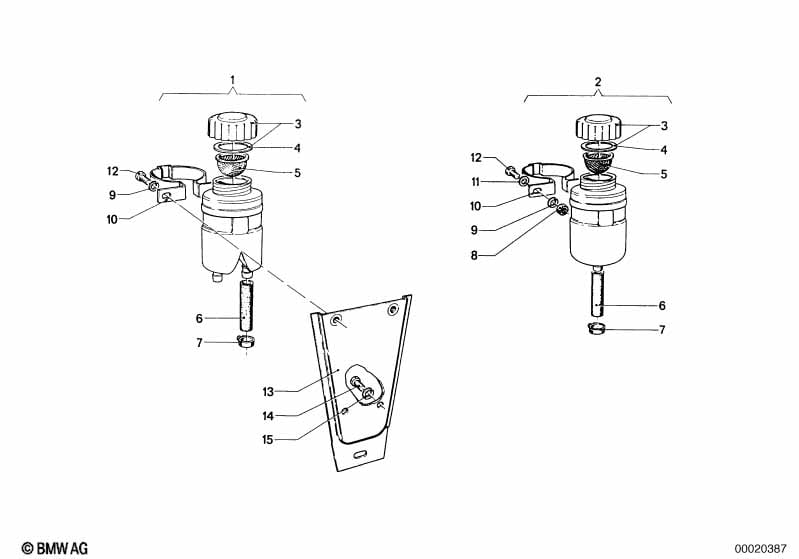

This Expansion tank technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000C. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Expansion tank | 1 | 34311100216 | ENDED | Shop at ECS Tuning | |||||
| 03 | Cover lid | 1 | 21521119541 | $4.27 | Shop at ECS Tuning | |||||
| 04 | Gasket | 1 | 34321102798 | $2.82 | Shop at ECS Tuning | |||||
| 05 | Strainer tube | 1 | 34321114836 | ENDED | Shop at ECS Tuning | |||||
| 06 | Hose | 7.5X13.5 | X | 35006857512 | Shop at ECS Tuning | |||||
| 07 | Hose clamp | L=9-12 | 2 | 07129952102 | $1.18 | Shop at ECS Tuning | ||||
| 08 | Hex nut | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Wave washer | B6 | 2 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 11 | Washer | 6-200 HV-ZNS3 | 2 | 07119904606 | $0.84 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M6X12-8.8-ZNNIV | 2 | 07119905524 | $0.27 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 2000C Expansion tank?
- This technical diagram illustrates the Expansion tank within the Brakes group for the 1500-2000CS 2000C produced during 1970. It provides a detailed exploded view of the components, identifying key parts such as the Expansion tank (Part #34311100216).
- Which models use the hardware listed in this Expansion tank?
- The hardware and components featured in the Expansion tank are specific to the 1500-2000CS 2000C produced during 1970. These technical specifications ensure that parts like the Expansion tank (34311100216) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Expansion tank assembly?
- Each item in the Expansion tank corresponds to the numbered list below the illustration. For the 1500-2000CS 2000C, you can identify the Expansion tank by locating its position on the schematic, which then links to the official BMW part number 34311100216 for the Brakes section.
