Brake pipe for BMW 2.5CS-3.0CSL 3.0CSi (1972)

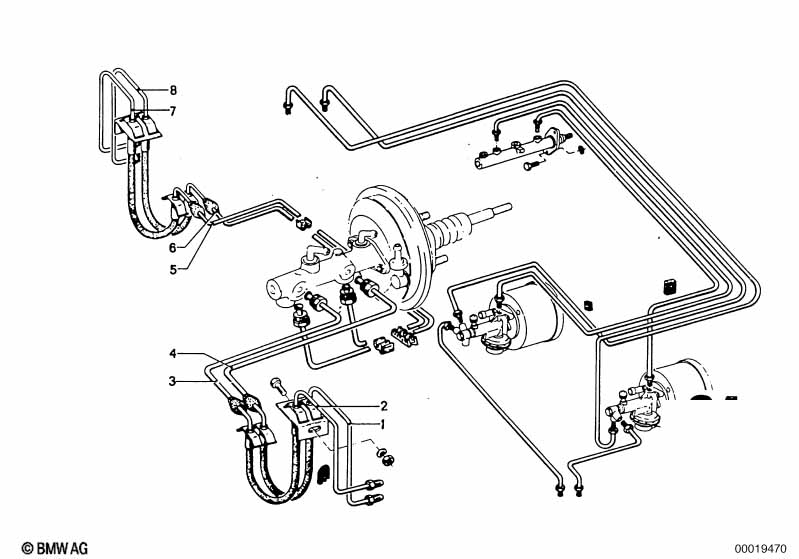

This Brake pipe technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1972.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pipe | M10/M10-420MM | 1 | 34326755571 | $7.60 | Shop at ECS Tuning | ||||
| 02 | Pipe | M10/M10-380MM | 1 | 34326755567 | $7.60 | Shop at ECS Tuning | ||||
| 03 | Pipe | M10/M10-620MM | 1 | 34326755585 | $7.65 | Shop at ECS Tuning | ||||
| 03 | Pipe | M10/M10-751MM | 1 | 04/1971 | 11/1975 | 34326755591 | $8.65 | Shop at ECS Tuning | ||
| 04 | Pipe | M10/M10 | 1 | 34326772472 | $39.15 | Shop at ECS Tuning | ||||
| 04 | Pipe | M10/M10-751MM | 1 | 04/1971 | 11/1975 | 34326755591 | $8.65 | Shop at ECS Tuning | ||
| 05 | Pipe | M10/M10-1656MM | 1 | 34326755634 | $8.65 | Shop at ECS Tuning | ||||
| 05 | Pipe | M10/M10-1764MM | 1 | 09/1971 | 11/1975 | 34326755638 | $7.79 | Shop at ECS Tuning | ||
| 06 | Pipe | M10/M10 | 1 | 34326772492 | $9.12 | Shop at ECS Tuning | ||||
| 06 | Pipe | M10/M10-1656MM | 1 | 09/1971 | 11/1975 | 34326755634 | $8.65 | Shop at ECS Tuning | ||
| 07 | Pipe | M10/M10-380MM | 1 | 34326755567 | $7.60 | Shop at ECS Tuning | ||||
| 08 | Brake pipe | 1 | 34321105698 | $9.36 | Shop at ECS Tuning |
