Brake master cylinder for BMW 2.5CS-3.0CSL 3.0CSL (1973)

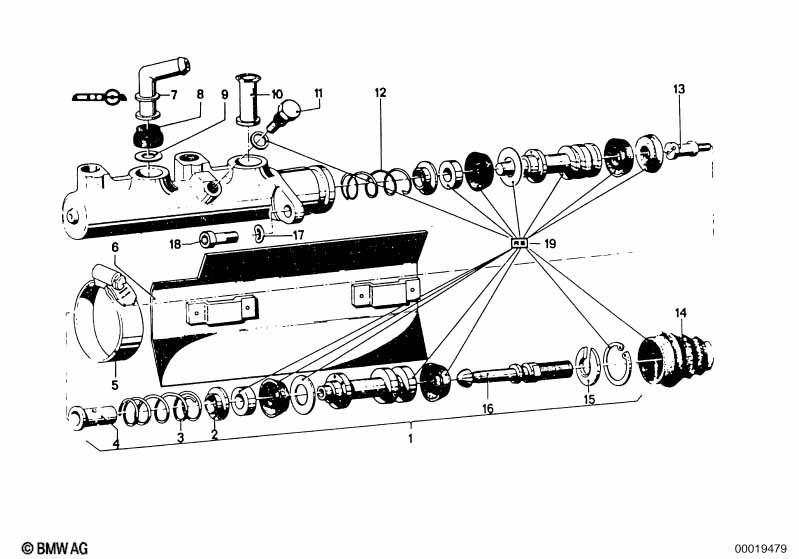

This Brake master cylinder technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Brake master cylinder | D=22,20MM | 1 | 34311102812 | $725.05 | ENDED | Shop at ECS Tuning | |||
| 02 | Spring pocket | 2 | 34311103471 | $2.64 | ENDED | Shop at ECS Tuning | ||||
| 03 | Compression spring secondary | 1 | 34311100748 | $0.86 | ENDED | Shop at ECS Tuning | ||||
| 04 | Sleeve | 1 | 34311103304 | $8.17 | ENDED | Shop at ECS Tuning | ||||
| 05 | Hose clamp | L28-33 | 2 | 07129952113 | $0.96 | Shop at ECS Tuning | ||||
| 06 | Protection plate | 1 | 34311105409 | ENDED | Shop at ECS Tuning | |||||
| 07 | Connector | 2 | 34321102282 | $4.16 | Shop at ECS Tuning | |||||
| 08 | Plug | 17/8 | 2 | 34311103205 | $3.17 | Shop at ECS Tuning | ||||
| 08 | Plug | 22/8 | 2 | 34311121911 | $6.22 | Shop at ECS Tuning | ||||
| 09 | Washer | 2 | 34314650172 | $1.12 | Shop at ECS Tuning | |||||
| 10 | Connector | 1 | 09/1971 | 11/1975 | 21521161628 | $1.47 | Shop at ECS Tuning | |||
| 11 | Stopper bolt outer | ATE | 1 | 34311103475 | $4.98 | ENDED | Shop at ECS Tuning | |||
| 12 | Compression spring primary | 1 | 34311100747 | ENDED | Shop at ECS Tuning | |||||
| 13 | Stopper bolt inner | D=22,2 | 1 | 34311103478 | ENDED | Shop at ECS Tuning | ||||
| 14 | Kit dust cap | 1 | 34314650160 | ENDED | Shop at ECS Tuning | |||||
| 15 | Stopper | 1 | 34311103328 | ENDED | Shop at ECS Tuning | |||||
| 16 | Piston rod | 1 | 34311103290 | ENDED | Shop at ECS Tuning | |||||
| 17 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||

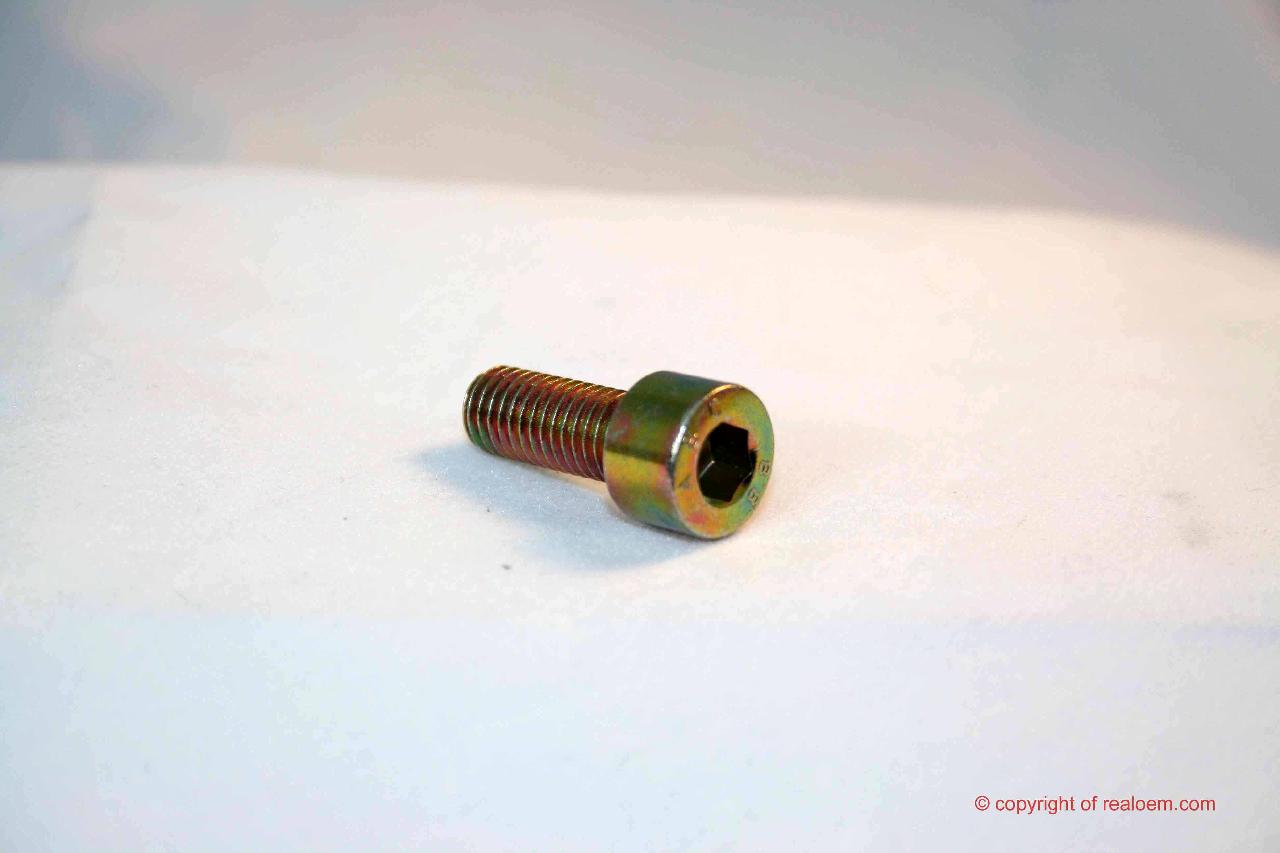

| 18 | Fillister-head screw | M8X20-8.8 ZN | 2 | 07119919969 | $0.78 | Shop at ECS Tuning | ||||
| 19 | Repair kit brake master cylinder | 1 | 34311103745 | $111.20 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2.5CS-3.0CSL 3.0CSL Brake master cylinder?
- This technical diagram illustrates the Brake master cylinder within the Brakes group for the 2.5CS-3.0CSL 3.0CSL produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Brake master cylinder (Part #34311102812).
- Which models use the hardware listed in this Brake master cylinder?
- The hardware and components featured in the Brake master cylinder are specific to the 2.5CS-3.0CSL 3.0CSL produced during 1973. These technical specifications ensure that parts like the Brake master cylinder (34311102812) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Brake master cylinder assembly?
- Each item in the Brake master cylinder corresponds to the numbered list below the illustration. For the 2.5CS-3.0CSL 3.0CSL, you can identify the Brake master cylinder by locating its position on the schematic, which then links to the official BMW part number 34311102812 for the Brakes section.
