Parking brake/control for BMW 2.5CS-3.0CSL 3.0CS (1973)

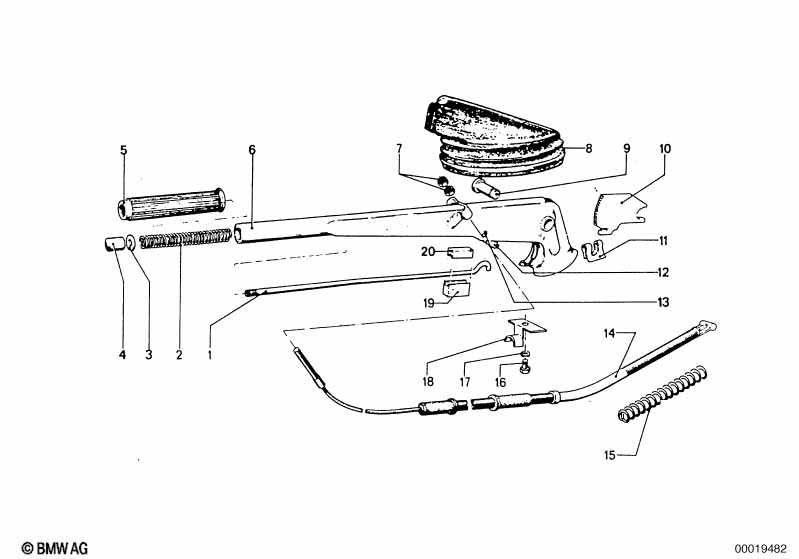

This Parking brake/control technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rod | 1 | 12/1968 | 11/1975 | 34411152892 | $0.95 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Handbrake lever | X | 12/1968 | 11/1975 | 34411112702 | $22.60 | ENDED | Shop at ECS Tuning | ||
| 02 | Compression spring | 1 | 34411108287 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Handbrake lever | X | 34411112702 | $22.60 | ENDED | Shop at ECS Tuning | ||||
| 02 | Compression spring | 1 | 12/1968 | 11/1975 | 34414045503 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Handbrake lever | X | 12/1968 | 11/1975 | 34411112702 | $22.60 | ENDED | Shop at ECS Tuning | ||
| 03 | Rubber washer | 1 | 34414045712 | $0.20 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Compression spring | X | 34411108287 | ENDED | Shop at ECS Tuning | |||||
| 04 | Push-button | 1 | 34414061710 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Compression spring | X | 34411108287 | ENDED | Shop at ECS Tuning | |||||
| 05 | Handle | 1 | 34414660109 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Compression spring | X | 34411108287 | ENDED | Shop at ECS Tuning | |||||
| 06 | Handbrake lever | 1 | 34411112702 | $22.60 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Compression spring | X | 34411108287 | ENDED | Shop at ECS Tuning | |||||
| 07 | Hex nut | M6-8-ZNNIV SI | 4 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Ratched-pin | X | 34411103985 | $61.95 | ENDED | Shop at ECS Tuning | ||||
| 08 | Protection cap | 1 | 34411101501 | $27.58 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Ratched-pin | X | 34411103985 | $61.95 | ENDED | Shop at ECS Tuning | ||||
| 09 | Pin | 1 | 34411104265 | $0.79 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Ratched-pin | X | 34411103985 | $61.95 | ENDED | Shop at ECS Tuning | ||||
| 10 | Ratched | 1 | 34411151769 | $98.52 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Ratched-pin | X | 34411103985 | $61.95 | ENDED | Shop at ECS Tuning | ||||
| 11 | Circlip | 10-ZNS3 | 2 | 07119904911 | $0.27 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Ratched | X | 34411118530 | ENDED | Shop at ECS Tuning | |||||
| 12 | Ratched-pin | 1 | 34411103985 | $61.95 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Ratched | X | 34411118530 | ENDED | Shop at ECS Tuning | |||||
| 13 | Pin | 1 | 34411114413 | $0.57 | Shop at ECS Tuning | |||||
| 19 | Rubber seal | 1 | 34414660101 | $16.74 | ENDED | Shop at ECS Tuning | ||||
| 20 | Rubber seal | 1 | 34414660100 | $16.74 | ENDED | Shop at ECS Tuning | ||||
