Front wheel brake for BMW 2500-3.3Li 3.0Si (1975)

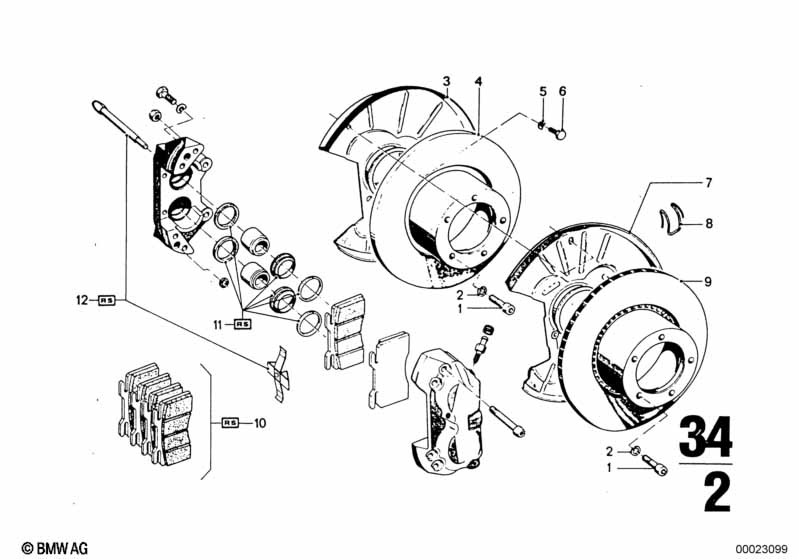

This Front wheel brake technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fillister-head screw | M10X25-10.9 PHR | 10 | 07119919994 | $0.84 | Shop at ECS Tuning | ||||
| 02 | Wave washer | B10-ZNS3 | 10 | 07119904463 | Shop at ECS Tuning | |||||
| 03 | Protection plate left | 1 | 08/1968 | 02/1977 | 34111111335 | $52.39 | ENDED | Shop at ECS Tuning | ||
| 03 | Protection plate right | 1 | 08/1968 | 02/1977 | 34111111336 | $52.39 | ENDED | Shop at ECS Tuning | ||
| 04 | Brake disk | 272X12 | 2 | 08/1968 | 02/1977 | 34111152089 | $128.19 | ENDED | Shop at ECS Tuning | |
| 05 | Wave washer | B6 | 6 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 06 | Hex bolt | M6X12-8.8-ZNNIV | 6 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 10 | Repair kit, brake pads asbestos-free | TEXTAR T476 | 1 | 34111159257 | $92.64 | ENDED | Shop at ECS Tuning | |||
| 10 | Repair kit, brake pads | SPORT | 1 | 08/1968 | 02/1977 | 34111108853 | ENDED | Shop at ECS Tuning | ||
| 11 | Repair set brake caliper | ATE | 2 | 08/1968 | 02/1977 | 34111158692 | $46.19 | Shop at ECS Tuning | ||
| 12 | Set mounting parts | 1 | 08/1968 | 02/1977 | 34111113663 | $30.03 | Shop at ECS Tuning |
