Rear wheel brake for BMW 2500-3.3Li 2500 (1971)

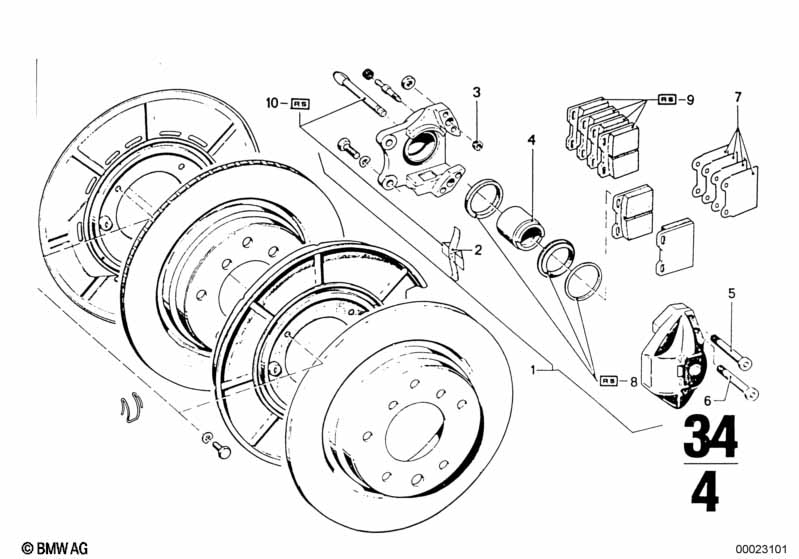

This Rear wheel brake technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Caliper with out brake pads left | 1 | 08/1968 | 02/1977 | 34211150275 | $574.08 | Shop at ECS Tuning | |||
| 01 | Caliper with out brake pads right | 1 | 08/1968 | 02/1977 | 34211150276 | $574.08 | ENDED | Shop at ECS Tuning | ||
| 02 | Clip | 2 | 08/1968 | 02/1977 | 34211103449 | $18.41 | ENDED | Shop at ECS Tuning | ||
| 04 | Piston | 4 | 34211103210 | Shop at ECS Tuning | ||||||
| 05 | Screw | 4 | 08/1968 | 02/1977 | 34211108773 | $3.39 | ENDED | Shop at ECS Tuning | ||
| 06 | Screw | 4 | 34211108774 | $3.39 | ENDED | Shop at ECS Tuning | ||||
| 07 | Protection plate | 4 | 34211116006 | $7.17 | ENDED | Shop at ECS Tuning | ||||
| 08 | Repair set brake caliper | 2 | 34211103482 | $24.88 | ENDED | Shop at ECS Tuning | ||||
| 09 | Repair kit, brake pads | SPORT | 1 | 08/1968 | 02/1977 | 34211108854 | ENDED | Shop at ECS Tuning | ||
| 09 | Repair kit, brake pads asbestos-free | TEXTAR T477 | 1 | 08/1968 | 02/1977 | 34211159265 | $54.20 | Shop at ECS Tuning | ||
| 10 | Set mounting parts | 1 | 08/1968 | 02/1977 | 34211113665 | $20.44 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2500 Rear wheel brake?
- This technical diagram illustrates the Rear wheel brake within the Brakes group for the 2500-3.3Li 2500 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Caliper with out brake pads left (Part #34211150275).
- Which models use the hardware listed in this Rear wheel brake?
- The hardware and components featured in the Rear wheel brake are specific to the 2500-3.3Li 2500 produced during 1971. These technical specifications ensure that parts like the Caliper with out brake pads left (34211150275) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear wheel brake assembly?
- Each item in the Rear wheel brake corresponds to the numbered list below the illustration. For the 2500-3.3Li 2500, you can identify the Caliper with out brake pads left by locating its position on the schematic, which then links to the official BMW part number 34211150275 for the Brakes section.
