Brake pipe, front for BMW 2500-3.3Li 2800 (1975)

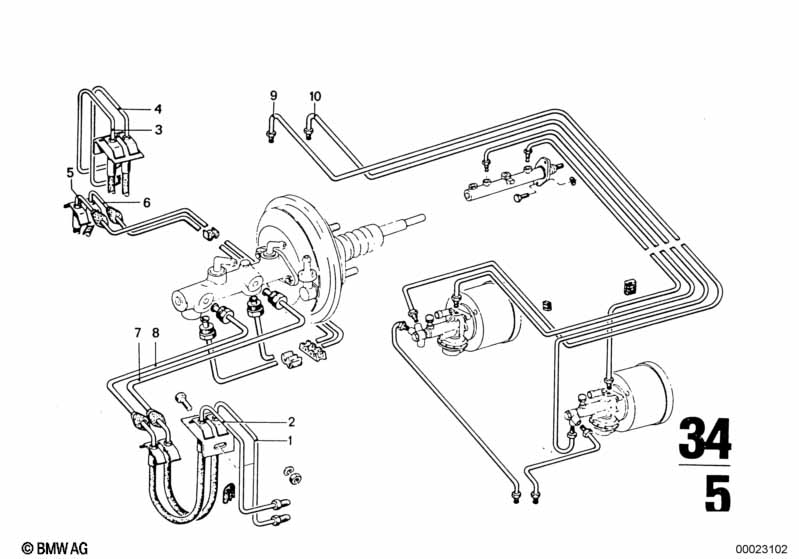

This Brake pipe, front technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pipe | M10/M10-360MM | 1 | 09/1973 | 02/1977 | 34326755565 | $7.60 | Shop at ECS Tuning | ||
| 02 | Pipe | M10/M10-340MM | 1 | 09/1973 | 02/1977 | 34326755563 | $7.60 | Shop at ECS Tuning | ||
| 03 | Pipe | M10/M10-340MM | 1 | 09/1973 | 02/1977 | 34326755563 | $7.60 | Shop at ECS Tuning | ||
| 04 | Pipe | M10/M10-360MM | 1 | 09/1973 | 02/1977 | 34326755565 | $7.60 | Shop at ECS Tuning | ||
| 05 | Pipe | M10/M10-1705MM | 1 | 08/1968 | 02/1977 | 34326755636 | $10.03 | Shop at ECS Tuning | ||
| 06 | Pipe | M10/M10 | 1 | 08/1968 | 02/1977 | 34326772492 | $9.12 | Shop at ECS Tuning | ||
| 07 | Pipe | M10/M10 | 1 | 08/1968 | 02/1977 | 34326772472 | $39.15 | Shop at ECS Tuning | ||
| 08 | Pipe | M10/M10-620MM | 1 | 08/1968 | 02/1977 | 34326755585 | $7.65 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2800 Brake pipe, front?
- This technical diagram illustrates the Brake pipe, front within the Brakes group for the 2500-3.3Li 2800 produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Pipe (Part #34326755565).
- Which models use the hardware listed in this Brake pipe, front?
- The hardware and components featured in the Brake pipe, front are specific to the 2500-3.3Li 2800 produced during 1975. These technical specifications ensure that parts like the Pipe (34326755565) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Brake pipe, front assembly?
- Each item in the Brake pipe, front corresponds to the numbered list below the illustration. For the 2500-3.3Li 2800, you can identify the Pipe by locating its position on the schematic, which then links to the official BMW part number 34326755565 for the Brakes section.
