Brake pipe, front for BMW 2500-3.3Li 3.3L (1975)

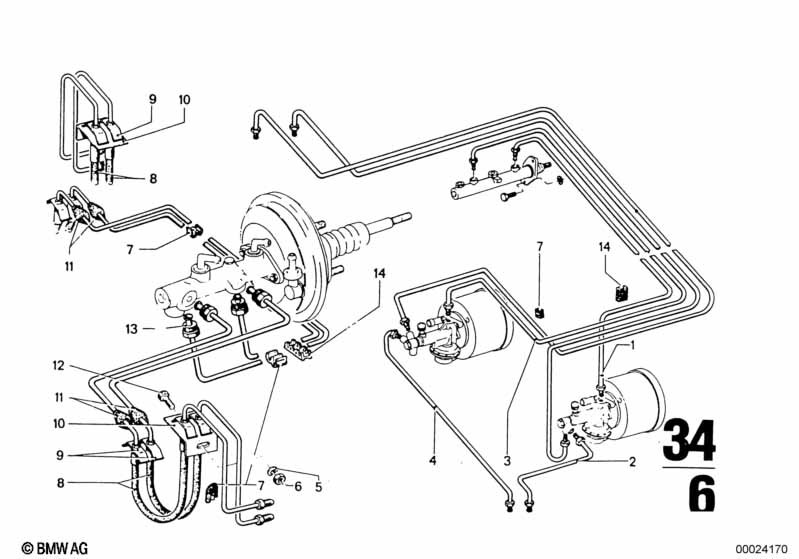

This Brake pipe, front technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 05 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Hex nut | M8-8-ZNS3 | 2 | 02/1977 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 06 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 07 | Spacer holder | 5 | 34321107991 | $1.02 | Shop at ECS Tuning | |||||
| 08 | Brake hose | 4 | 08/1968 | 02/1977 | 34321159879 | $45.23 | Shop at ECS Tuning | |||
| 09 | Clip | 8 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 10 | Holder, brake hose | LINKS / RECHTS | 2 | 34321117804 | $11.32 | ENDED | Shop at ECS Tuning | |||
| 11 | Rubber grommet | 4 | 34321102417 | $6.03 | ENDED | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M8X12 | 2 | 07119902914 | $0.47 | Shop at ECS Tuning | ||||
| 13 | Connector | M10X1 | X | 34321151806 | $1.22 | ENDED | Shop at ECS Tuning | |||
| 14 | Brake pipe bracket | 3 | 34321107992 | $1.02 | Shop at ECS Tuning |
