Brake pipe rear for BMW 2500-3.3Li 3.0S (1977)

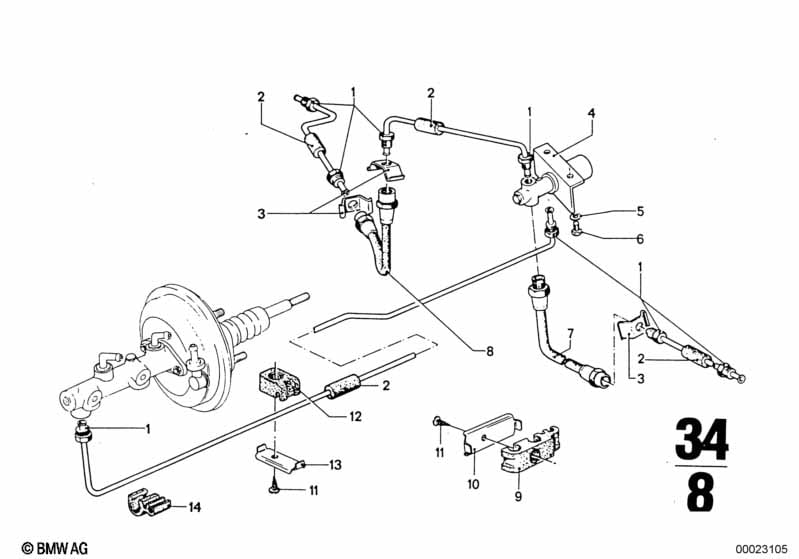

This Brake pipe rear technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Connector | M10X1 | 8 | 34321151806 | $1.22 | ENDED | Shop at ECS Tuning | |||
| 02 | Rubber grommet | 15 | 34324050540 | $1.32 | Shop at ECS Tuning | |||||
| 03 | Clip | 3 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 04 | Brake pressure regulator | 1 | 34344750020 | $210.92 | ENDED | Shop at ECS Tuning | ||||
| 05 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M8X12 | 2 | 07119902914 | $0.47 | Shop at ECS Tuning |
