Expansion tank for BMW 2500-3.3Li 2800 (1975)

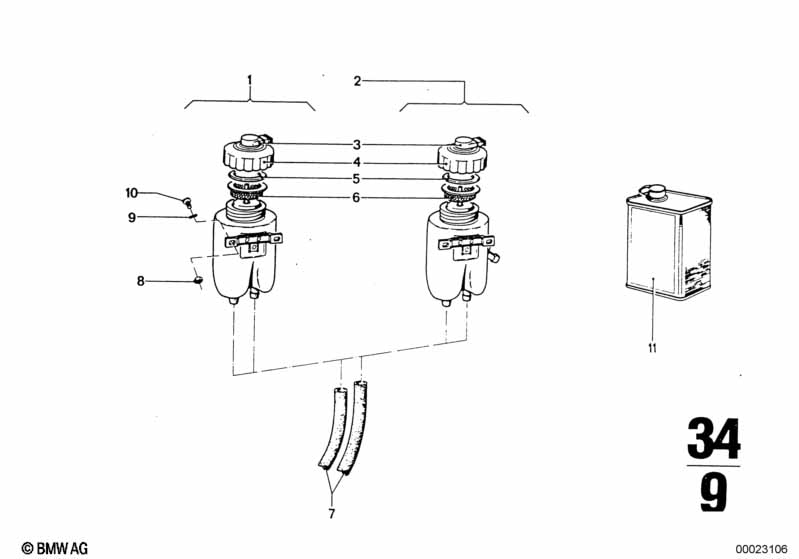

This Expansion tank technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Expansion tank | 2 AUSGÄNGE | 1 | 02/1969 | 02/1977 | 34321112400 | ENDED | Shop at ECS Tuning | ||
| 03 | Cover lid | 1 | 34321103064 | $27.58 | ENDED | Shop at ECS Tuning | ||||
| 04 | Cover lid | 1 | 34321103064 | $27.58 | ENDED | Shop at ECS Tuning | ||||
| 04 | Cap with warning switch | 1 | 34322225602 | $31.31 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Strainer tube | 1 | 34321120843 | $6.35 | Shop at ECS Tuning | |||||
| 05 | Gasket | 1 | 34321102798 | $2.82 | Shop at ECS Tuning | |||||
| 06 | Strainer with float | 1 | 34321103065 | $23.22 | ENDED | Shop at ECS Tuning | ||||
| 07 | Hose | 7.5X13.5 | X | 35006857512 | Shop at ECS Tuning | |||||
| 09 | Wave washer | B6 | 2 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 10 | Fillister head screw | M6X12 | 2 | 07119907649 | $0.10 | Shop at ECS Tuning | ||||
| 11 | Brake fluid | 1000 ML | X | 81229407512 | $14.84 | ENDED | Shop at ECS Tuning | |||
| 11 | Brake fluid DOT4 LV, low viscosity | 5000ML | X | 83132405978 | ENDED | Shop at ECS Tuning | ||||
| 11 | Brake fluid DOT4, low-viscosity EU | 1000ML | X | 83135A82511 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2800 Expansion tank?
- This technical diagram illustrates the Expansion tank within the Brakes group for the 2500-3.3Li 2800 produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Expansion tank (Part #34321112400).
- Which models use the hardware listed in this Expansion tank?
- The hardware and components featured in the Expansion tank are specific to the 2500-3.3Li 2800 produced during 1975. These technical specifications ensure that parts like the Expansion tank (34321112400) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Expansion tank assembly?
- Each item in the Expansion tank corresponds to the numbered list below the illustration. For the 2500-3.3Li 2800, you can identify the Expansion tank by locating its position on the schematic, which then links to the official BMW part number 34321112400 for the Brakes section.
