Brake master cylinder w.power brake unit for BMW 2500-3.3Li 3.0Si (1975)

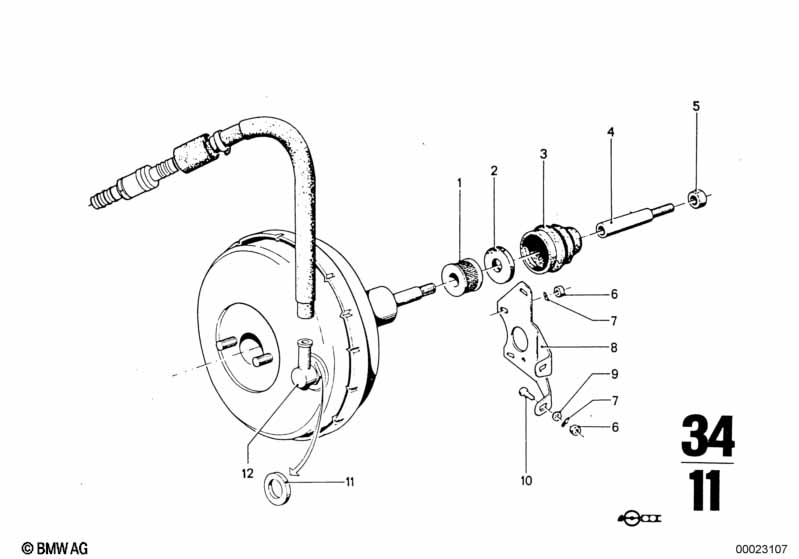

This Brake master cylinder w.power brake unit technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air cleaner | 1 | 34334650141 | $2.00 | ENDED | Shop at ECS Tuning | ||||
| 02 | Absorber | 1 | 34334650147 | $7.88 | Shop at ECS Tuning | |||||
| 03 | Protection cap | 1 | 34334650142 | $12.36 | ENDED | Shop at ECS Tuning | ||||
| 06 | Hex nut | M8-8-ZNS3 | 4 | 02/1977 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 06 | Hex nut | M8-8-ZNNIV SI | 4 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 07 | Wave washer | 8,4X15-ZNS3 | 8 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Washer | 4 | 11614000131 | $1.80 | ENDED | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M8X16-10.9-PHR | 2 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 11 | Gasket ring | 1 | 08/1968 | 02/1977 | 34331103244 | $7.73 | ENDED | Shop at ECS Tuning | ||
| 11 | Gasket ring | 1 | 08/1968 | 02/1977 | 34331103314 | $3.32 | ENDED | Shop at ECS Tuning | ||
| 12 | Connector | 1 | 34331103261 | $20.43 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0Si Brake master cylinder w.power brake unit?
- This technical diagram illustrates the Brake master cylinder w.power brake unit within the Brakes group for the 2500-3.3Li 3.0Si produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Air cleaner (Part #34334650141).
- Which models use the hardware listed in this Brake master cylinder w.power brake unit?
- The hardware and components featured in the Brake master cylinder w.power brake unit are specific to the 2500-3.3Li 3.0Si produced during 1975. These technical specifications ensure that parts like the Air cleaner (34334650141) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Brake master cylinder w.power brake unit assembly?
- Each item in the Brake master cylinder w.power brake unit corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0Si, you can identify the Air cleaner by locating its position on the schematic, which then links to the official BMW part number 34334650141 for the Brakes section.
