Brake master cylinder w.power brake unit for BMW 2500-3.3Li 2500 (1971)

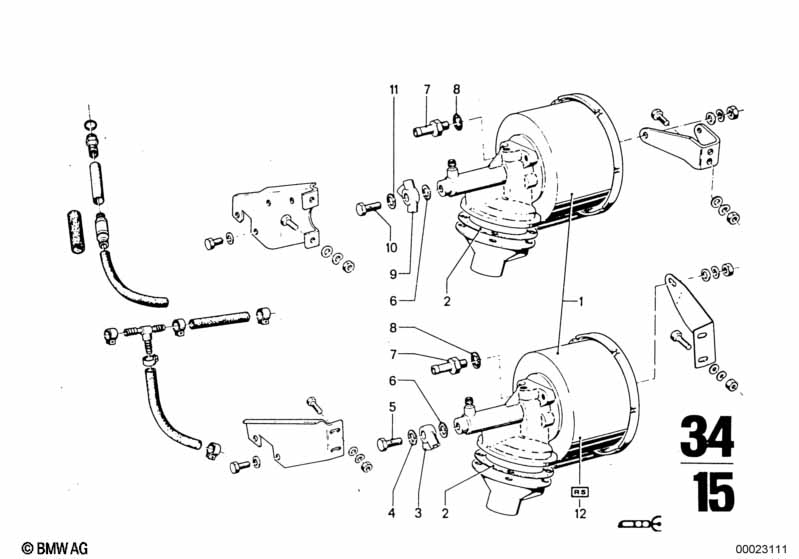

This Brake master cylinder w.power brake unit technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Power brake | ATE T 50 | 2 | 07/1969 | 09/1973 | 34331103339 | ENDED | Shop at ECS Tuning | ||
| 02 | Gasket | 2 | 34331101071 | ENDED | Shop at ECS Tuning | |||||
| 03 | Connector | 1 | 34331151745 | $18.30 | ENDED | Shop at ECS Tuning | ||||
| 04 | Gasket ring | A12X16-CU | 2 | 07119963132 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Hollow bolt | 1 | 35331151747 | ENDED | Shop at ECS Tuning | |||||
| 06 | Gasket ring | 2 | 34331151743 | $14.17 | Shop at ECS Tuning | |||||
| 07 | Connector | 2 | 34331103316 | ENDED | Shop at ECS Tuning | |||||
| 08 | Gasket ring | A14X20-CU | 2 | 07119963226 | $0.18 | Shop at ECS Tuning | ||||
| 09 | Connector | 1 | 34314650339 | ENDED | Shop at ECS Tuning | |||||
| 10 | Screw | 1 | 34314650341 | $7.92 | ENDED | Shop at ECS Tuning | ||||
| 11 | Gasket ring | A14X18-CU | 2 | 07119963201 | $0.18 | Shop at ECS Tuning | ||||
| 12 | Repair kit power brake unit | ATE T 50 | 2 | 05/1971 | 02/1977 | 34331112187 | ENDED | Shop at ECS Tuning |
