Brake master cylinder w.power brake unit for BMW 2500-3.3Li 2800 (1971)

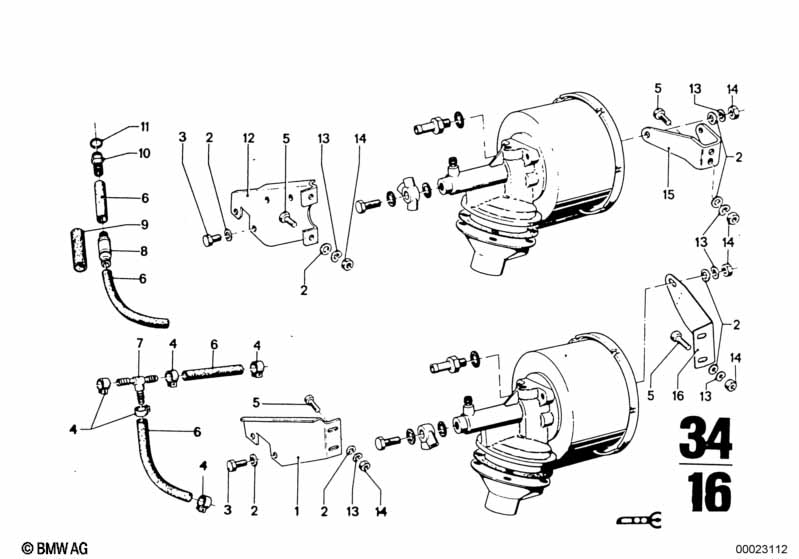

This Brake master cylinder w.power brake unit technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Holder | 1 | 34331102895 | ENDED | Shop at ECS Tuning | |||||
| 02 | Washer | 6 | 11614000131 | $1.80 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M8X16-10.9-PHR | 8 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 04 | Hose clamp | L15-19 | 8 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M8X18-8.8-ZNS3 | 8 | 07119904146 | $0.65 | Shop at ECS Tuning | ||||
| 06 | Hose | 7.5X13.5 | X | 35006857512 | Shop at ECS Tuning | |||||
| 07 | Distribution piece | 1 | 11611286452 | ENDED | Shop at ECS Tuning | |||||
| 08 | non-return valve | 1 | 34331151533 | Shop at ECS Tuning | ||||||
| 09 | Protective hose | 1 | 07/1969 | 02/1977 | 34331105226 | ENDED | Shop at ECS Tuning | |||
| 10 | Connector | 1 | 07/1969 | 02/1977 | 34331102538 | $18.21 | ENDED | Shop at ECS Tuning | ||
| 11 | Gasket ring | A22X27-AL | 1 | 07/1969 | 02/1977 | 07119963355 | $0.36 | Shop at ECS Tuning | ||
| 12 | Holder | 1 | 07/1969 | 02/1977 | 34331102988 | ENDED | Shop at ECS Tuning | |||
| 13 | Wave washer | 8,4X15-ZNS3 | 20 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 14 | Hex nut | M8-8-ZNS3 | 12 | 02/1977 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 14 | Hex nut | M8-8-ZNNIV SI | 12 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 15 | Holder | 1 | 34331109778 | ENDED | Shop at ECS Tuning | |||||
| 16 | Holder | 1 | 34331105429 | ENDED | Shop at ECS Tuning |
