Parking brake/brake shoes for BMW 2500-3.3Li 2500 (1977)

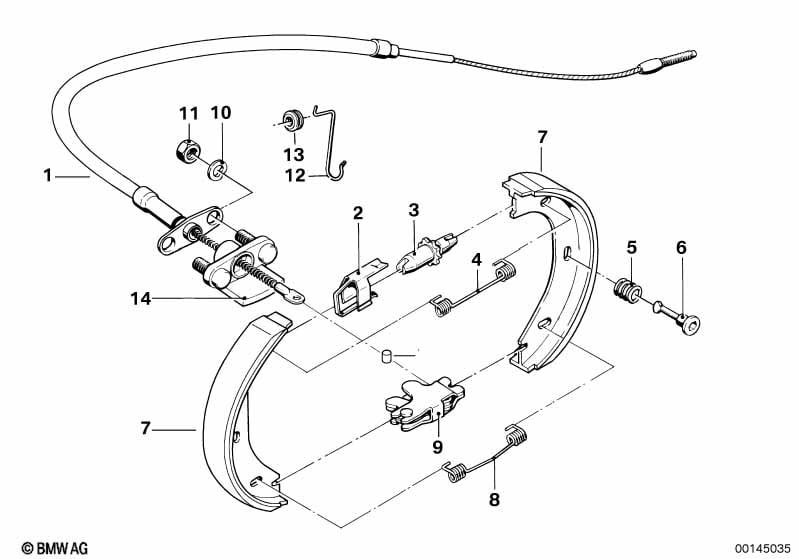

This Parking brake/brake shoes technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Clip | 2 | 34411100554 | $7.36 | Shop at ECS Tuning | |||||
| 03 | Adjusting screw | 2 | 34411100550 | $25.20 | ENDED | Shop at ECS Tuning | ||||
| 03 | Adjusting screw | 2 | 34416851438 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Clip | 2 | 34411100554 | $7.36 | Shop at ECS Tuning | |||||
| 04 | Tension spring | 2 | 34411102308 | $7.00 | Shop at ECS Tuning | |||||
| 05 | Compression spring | 4 | 34411100122 | $0.70 | Shop at ECS Tuning | |||||
| 06 | Roll pin | L=33MM | 4 | 34411100027 | $4.41 | Shop at ECS Tuning | ||||
| 07 | Repair kit brake shoe asbestos-free | 4 | 34411159467 | $93.33 | ENDED | Shop at ECS Tuning | ||||
| 08 | Tension spring | 2 | 34411121900 | $11.73 | Shop at ECS Tuning | |||||
| 09 | Expanding lock | 2 | 34416868624 | Shop at ECS Tuning | ||||||
| 10 | Wave washer | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 11 | Hex nut | M8-8-ZNNIV SI | 4 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 12 | Hook | 3 | 34411119369 | $0.66 | Shop at ECS Tuning | |||||
| 13 | Grommet | 3 | 34411102688 | $2.83 | ENDED | Shop at ECS Tuning | ||||
| 14 | Support | 2 | 34411115222 | $22.84 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
