Front wheel brake for BMW 2500-3.3Li 2800 (1971)

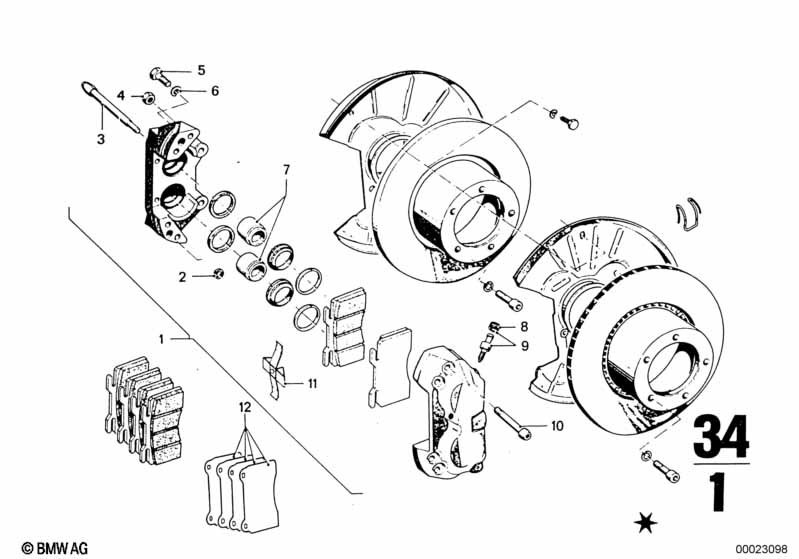

This Front wheel brake technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Caliper with out brake pads left | 1 | 08/1968 | 02/1977 | 34111101093 | $413.89 | Shop at ECS Tuning | |||
| 01 | Caliper with out brake pads right | 1 | 08/1968 | 02/1977 | 34111101094 | $413.89 | ENDED | Shop at ECS Tuning | ||
| 02 | Gasket ring | 4 | 34112660177 | $0.68 | ENDED | Shop at ECS Tuning | ||||
| 03 | Pin | 4 | 08/1968 | 02/1977 | 34111100738 | ENDED | Shop at ECS Tuning | |||
| 03 | Set mounting parts | 4 | 08/1968 | 02/1977 | 34111113663 | $30.03 | Shop at ECS Tuning | |||
| 04 | Nut | 8 | 34111108777 | ENDED | Shop at ECS Tuning | |||||
| 05 | Hex bolt | M12X1,5X32 | 4 | 34111118948 | $1.86 | Shop at ECS Tuning | ||||
| 06 | Wave washer | B12-ZN | 4 | 07119932132 | $0.25 | ENDED | Shop at ECS Tuning | |||
| 07 | Piston | 8 | 34111103230 | ENDED | Shop at ECS Tuning | |||||
| 08 | Dust cap | 6 | 34111153198 | $6.15 | Shop at ECS Tuning | |||||
| 09 | Ventilation valve | 6 | 34111103232 | $8.76 | Shop at ECS Tuning | |||||
| 10 | Screw | 8 | 08/1968 | 02/1977 | 34111108771 | ENDED | Shop at ECS Tuning | |||
| 11 | Clip | 2 | 08/1968 | 02/1977 | 34111103450 | ENDED | Shop at ECS Tuning | |||
| 11 | Set mounting parts | 2 | 08/1968 | 02/1977 | 34111113663 | $30.03 | Shop at ECS Tuning | |||
| 12 | Protection plate | 4 | 34111116005 | $6.22 | Shop at ECS Tuning |
