Rear brake pipe ASC/DSC for BMW 7 Series E38 L7 (1998)

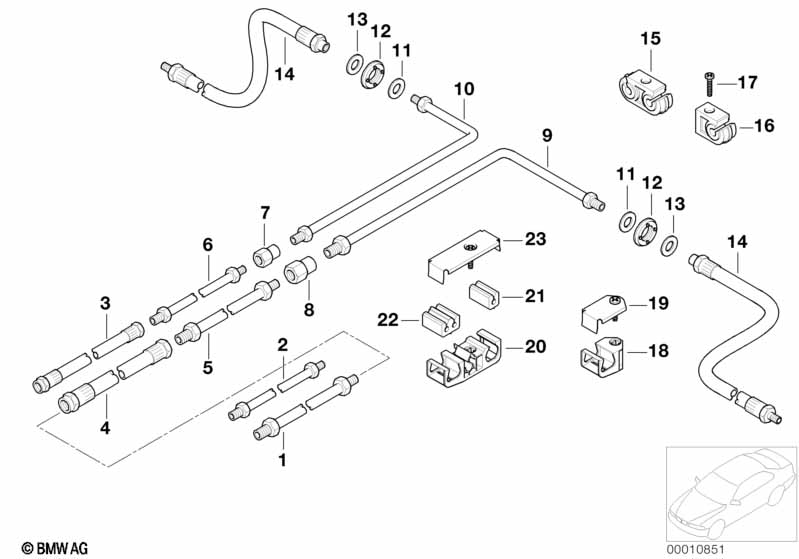

This Rear brake pipe ASC/DSC technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 L7. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pipe | M12/M12-176MM | 1 | 09/1998 | 34326755531 | $5.13 | Shop at ECS Tuning | |||
| 02 | Pipe | M10/M10-214MM | 1 | 34326755551 | $6.25 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 L7 Rear brake pipe ASC/DSC?
- This technical diagram illustrates the Rear brake pipe ASC/DSC within the Brakes group for the 7 Series E38 L7 produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Pipe (Part #34326755531).
- Which models use the hardware listed in this Rear brake pipe ASC/DSC?
- The hardware and components featured in the Rear brake pipe ASC/DSC are specific to the 7 Series E38 L7 produced during 1998. These technical specifications ensure that parts like the Pipe (34326755531) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear brake pipe ASC/DSC assembly?
- Each item in the Rear brake pipe ASC/DSC corresponds to the numbered list below the illustration. For the 7 Series E38 L7, you can identify the Pipe by locating its position on the schematic, which then links to the official BMW part number 34326755531 for the Brakes section.
