Hydro unit DSC/control unit/fastening for BMW 5 Series E39 540iP (1998)

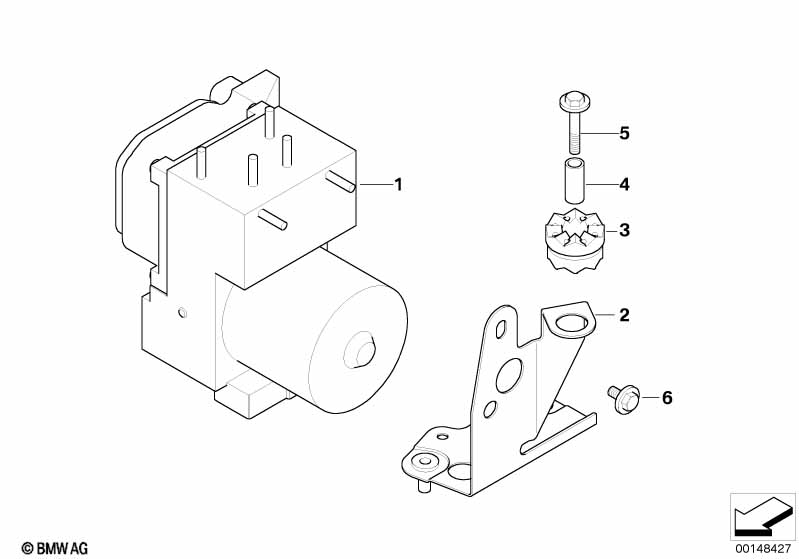

This Hydro unit DSC/control unit/fastening technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 540iP. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP hydraulic unit DSC | 1 | 09/1998 | 34511164242 | $2643.70 | Shop at ECS Tuning | ||||
| 02 | Bracket hydro unit | DSC | 1 | 09/1998 | 34511165150 | $9.38 | ENDED | Shop at ECS Tuning | ||
| 03 | Rubber Mounting | 3 | 09/1998 | 34511162818 | $2.57 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Spacer sleeve | 3 | 09/1998 | 34511165153 | $2.17 | ENDED | Shop at ECS Tuning | |||
| 05 | Hex bolt with washer | M6X35 ZNS3 | 1 | 07146971298 | $0.82 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M6X14-U1 | 2 | 09/1998 | 07119905693 | $0.71 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
