Front brake pipe ASC/DSC for BMW 5 Series E39 523i (2000)

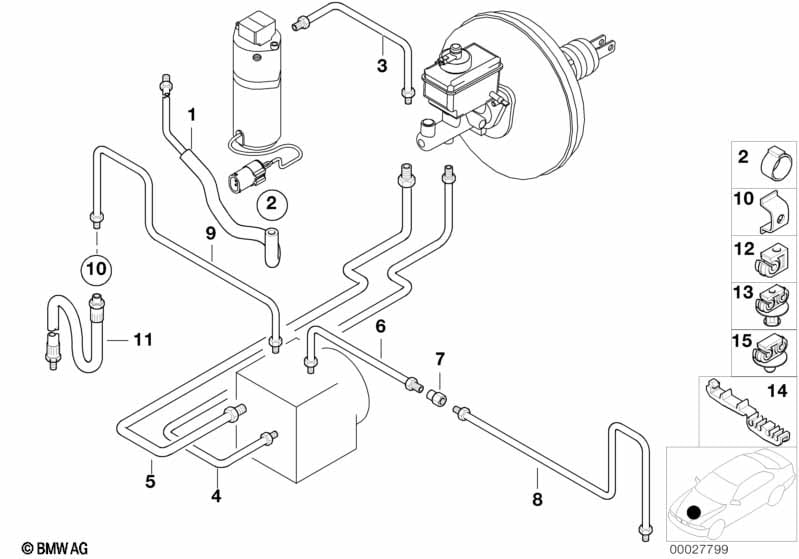

This Front brake pipe ASC/DSC technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | Pipe rubber covered | M10/M10 | 1 | 09/1998 | 34326755333 | Shop at ECS Tuning | ||||
| 05 | Pipe rubber covered | M12/M12 | 1 | 09/1998 | 34326755335 | Shop at ECS Tuning | ||||
| 06 | Pipe | M10/M12-1893MM | 1 | 09/1998 | 34326755304 | $10.03 | ENDED | Shop at ECS Tuning | ||
| 07 | Intermediate piece | M10X1 | 1 | 09/1998 | 34326757282 | $4.08 | Shop at ECS Tuning | |||
| 08 | Pipe | M10/M10-448MM | 1 | 09/1998 | 34326755306 | $5.83 | Shop at ECS Tuning | |||
| 09 | Pipe | M10/M12-963MM | 1 | 09/1998 | 34326755308 | $10.03 | Shop at ECS Tuning | |||
| 10 | Clip | 2 | 09/1998 | 34341163565 | $0.97 | Shop at ECS Tuning | ||||
| 11 | Brake hose front | 2 | 09/1998 | 34301165249 | $58.31 | Shop at ECS Tuning | ||||
| 12 | Brake pipe bracket | 1 | 09/1998 | 34326855500 | Shop at ECS Tuning | |||||
| 13 | Brake pipe bracket | 3 | 09/1998 | 34321162878 | $1.95 | Shop at ECS Tuning | ||||
| 14 | Spacer, 4-way | 1 | 09/1998 | 34326777692 | $0.38 | Shop at ECS Tuning | ||||
| 15 | Brake pipe bracket | 1 | 09/1998 | 34321160027 | $0.80 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 523i Front brake pipe ASC/DSC?
- This technical diagram illustrates the Front brake pipe ASC/DSC within the Brakes group for the 5 Series E39 523i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Pipe rubber covered (Part #34326755333).
- Which models use the hardware listed in this Front brake pipe ASC/DSC?
- The hardware and components featured in the Front brake pipe ASC/DSC are specific to the 5 Series E39 523i produced during 2000. These technical specifications ensure that parts like the Pipe rubber covered (34326755333) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front brake pipe ASC/DSC assembly?
- Each item in the Front brake pipe ASC/DSC corresponds to the numbered list below the illustration. For the 5 Series E39 523i, you can identify the Pipe rubber covered by locating its position on the schematic, which then links to the official BMW part number 34326755333 for the Brakes section.
