Power brake unit depression for BMW 5 Series E39 525d (2003)

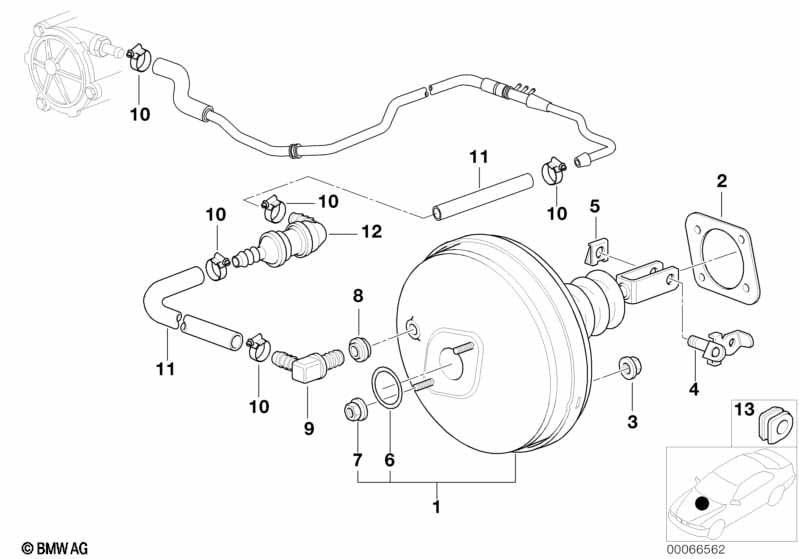

This Power brake unit depression technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | VACUUM PIPE REFER TO MAIN GROUP 11 |
|||||||||
| 01 | Power brake | LSC-145 | 1 | 34331165541 | $588.00 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Gasket | D=70MM | 1 | 35111165132 | $3.10 | Shop at ECS Tuning | ||||
| -- | Self-locking collar nut | M8-10 ZNS3 | 2 | 07119905374 | Shop at ECS Tuning | |||||
| 02 | Gasket | D=70MM | 1 | 35111165132 | $3.10 | Shop at ECS Tuning | ||||
| 03 | Self-locking collar nut | M8-10 ZNS3 | 4 | 07119905374 | Shop at ECS Tuning | |||||
| 04 | Secuirng pin with groove | 1 | 01/2000 | 35216754712 | $2.43 | Shop at ECS Tuning | ||||
| 05 | Fuse | B10-ZNS3 | 1 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
| 06 | Brake master cylinder o-ring | 1 | 34311165092 | $3.15 | Shop at ECS Tuning | |||||
| 07 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 08 | Gasket ring | 1 | 34331158929 | $3.15 | Shop at ECS Tuning | |||||
| 09 | T-Connector | 1 | 34331113652 | $2.50 | Shop at ECS Tuning | |||||
| 10 | Hose clamp | 21,3MM | 4 | 11151726339 | $1.02 | Shop at ECS Tuning | ||||
| 11 | Hose | 12X19 | X | 34331108710 | $23.58 | Shop at ECS Tuning | ||||
| 12 | Check valve support | 1 | 34301163634 | $80.81 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Automatic air conditioning |
S534A=Yes |
|||||||||
| 12 | Check valve support | 1 | 34301161607 | $18.63 | Shop at ECS Tuning | |||||
| 13 | Rubber grommet | 1 | 34301162170 | $2.15 | Shop at ECS Tuning | |||||
