DSC compressor/senors/mounting parts for BMW 3 Series E46 328Ci (2000)

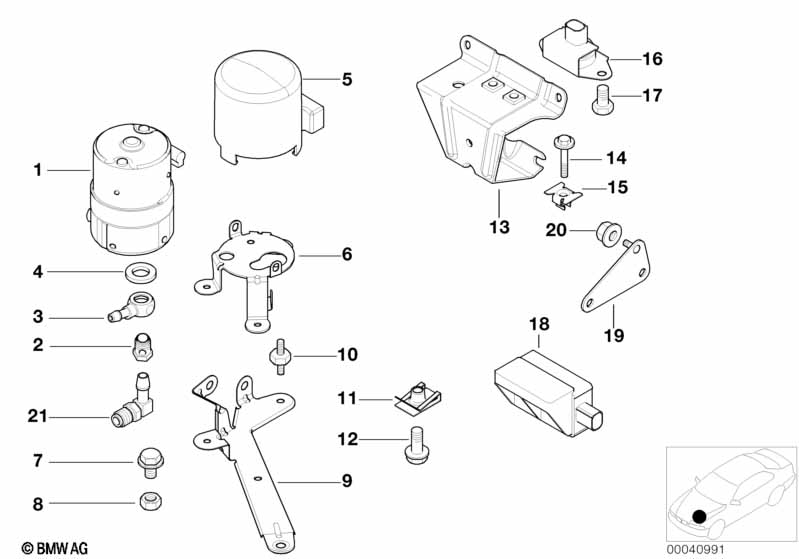

This DSC compressor/senors/mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 328Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Compressor DSC | 1 | 09/2000 | 34511166087 | $538.55 | Shop at ECS Tuning | ||||
| 05 | Protection cap | 1 | 09/2000 | 34511165552 | $3.22 | Shop at ECS Tuning | ||||
| 06 | Bracket f compressor | 1 | 09/2000 | 34511164469 | ENDED | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M6X12-U1-8.8 | 3 | 09/2000 | 07119904517 | $0.36 | Shop at ECS Tuning | |||
| 08 | Hex nut | M6-8-ZNNIV SI | 3 | 09/2000 | 07119905543 | $0.38 | Shop at ECS Tuning | |||
| 09 | Bracket f compressor | 1 | 09/2000 | 34511164470 | ENDED | Shop at ECS Tuning | ||||
| 10 | Rubber buffer | 3 | 09/2000 | 64119175671 | $4.25 | Shop at ECS Tuning | ||||
| 11 | Cage nut | M8 | 1 | 09/2000 | 07129926520 | $0.39 | Shop at ECS Tuning | |||
| 12 | Hex bolt | M8X20-Z1-8.8 | 3 | 09/2000 | 17111723673 | $0.63 | Shop at ECS Tuning | |||
| 13 | Bracket f.sensor | 1 | 09/2000 | 34521165384 | $7.43 | Shop at ECS Tuning | ||||
| 14 | Hex bolt | M6X16-8.8-ZNS3 | 4 | 09/2000 | 07119904371 | $0.16 | Shop at ECS Tuning | |||
| 15 | Prestol-cage | M6 ZNS3 | 4 | 09/2000 | 32411095443 | $1.48 | Shop at ECS Tuning | |||
| 16 | Accelerating sensor | 1 | 09/2000 | 37146781405 | $102.03 | Shop at ECS Tuning | ||||
| 17 | Hex bolt | M6X20-8.8-ZNS | 2 | 09/2000 | 07119913016 | $0.60 | ENDED | Shop at ECS Tuning | ||
| 17 | Hex bolt | M6X20-8.8-ZNS | 2 | 09/2000 | 07119913016 | $0.60 | ENDED | Shop at ECS Tuning | ||
| 18 | Speed sensor | 1 | 09/2000 | 34526864094 | Shop at ECS Tuning | |||||
| 19 | Bracket for DSC sensor | 1 | 09/2000 | 34521164463 | $9.94 | Shop at ECS Tuning | ||||
| 20 | Plastic nut for coarse threaded pin | M6 | 1 | 09/2000 | 16131176747 | $0.53 | Shop at ECS Tuning | |||
| 21 | Angle piece | 1 | 09/2000 | 34511164464 | $12.13 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
