DSC compressor/senors/mounting parts for BMW 3 Series E46 328i (2000)

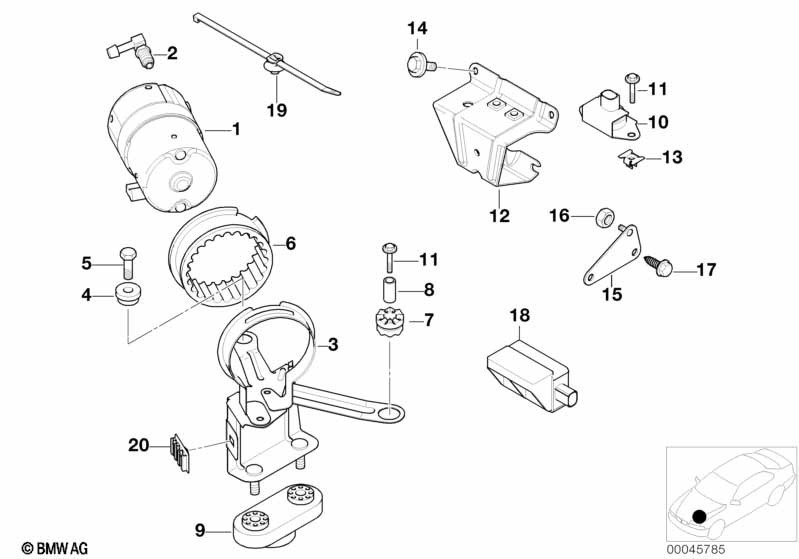

This DSC compressor/senors/mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | not suitable for 4-wheel | |||||||||
| 01 | Compressor DSC | 1 | 09/1999 | 09/2000 | 34511166087 | $538.55 | Shop at ECS Tuning | |||
| 02 | Angle piece | 1 | 09/1999 | 09/2000 | 34511164464 | $12.13 | Shop at ECS Tuning | |||
| 03 | Bracket f compressor | 1 | 09/1999 | 09/2000 | 34516751719 | $11.60 | Shop at ECS Tuning | |||
| 04 | Rubber Mounting | 1 | 09/1999 | 09/2000 | 34511164717 | $0.60 | Shop at ECS Tuning | |||
| 05 | Hex bolt | 1 | 09/1999 | 09/2000 | 34511154832 | $1.28 | Shop at ECS Tuning | |||
| 06 | Rubber mount for compressor | 1 | 09/1999 | 09/2000 | 34511165156 | $7.62 | Shop at ECS Tuning | |||
| 07 | Rubber Mounting | 1 | 09/1999 | 09/2000 | 34511162818 | $2.57 | Shop at ECS Tuning | |||
| 08 | Spacer sleeve | ZNS3 | 1 | 09/1999 | 09/2000 | 07146977328 | $1.21 | Shop at ECS Tuning | ||
| 09 | Rubber Mounting | 1 | 09/1999 | 09/2000 | 34511164465 | $13.13 | Shop at ECS Tuning | |||
| 10 | Accelerating sensor | 1 | 09/1999 | 09/2000 | 37146781405 | $102.03 | Shop at ECS Tuning | |||
| 11 | Hex bolt | M6X20-8.8-ZNS | 2 | 09/1999 | 09/2000 | 07119913016 | $0.60 | ENDED | Shop at ECS Tuning | |
| 11 | Hex bolt | M6X20-8.8-ZNS | 2 | 09/1999 | 09/2000 | 07119913016 | $0.60 | ENDED | Shop at ECS Tuning | |
| 12 | Bracket f.sensor | 1 | 09/1999 | 09/2000 | 34521165384 | $7.43 | Shop at ECS Tuning | |||
| 13 | Prestol-cage | M6 ZNS3 | 4 | 09/1999 | 09/2000 | 32411095443 | $1.48 | Shop at ECS Tuning | ||
| 14 | Hex bolt | M6X16-8.8-ZNS3 | 4 | 09/1999 | 09/2000 | 07119904371 | $0.16 | Shop at ECS Tuning | ||
| 15 | Bracket for DSC sensor | 1 | 09/1999 | 09/2000 | 34521164463 | $9.94 | Shop at ECS Tuning | |||
| 16 | Plastic nut for coarse threaded pin | M6 | 1 | 09/1999 | 09/2000 | 16131176747 | $0.53 | Shop at ECS Tuning | ||
| 17 | Sheet metal screw | 4,2X16 | 2 | 09/1999 | 09/2000 | 07119904265 | Shop at ECS Tuning | |||
| 18 | Speed sensor | 1 | 09/1999 | 09/2000 | 34526864094 | Shop at ECS Tuning | ||||
| 19 | Cable strap with bracket | Ø=5,9 / L=150 | 1 | 09/1999 | 09/2000 | 12512247487 | $1.23 | Shop at ECS Tuning | ||
| 20 | Bracket, plug connection white | 1 | 09/1999 | 09/2000 | 61131383699 | $0.93 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
