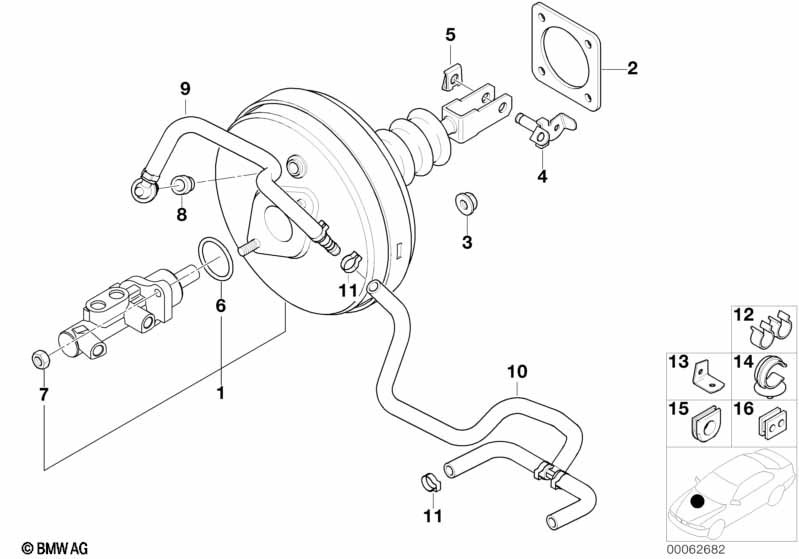

Power brake unit depression for BMW 5 Series E39 M5 (2003)
This Power brake unit depression technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Power brake | LSC-145 | 1 | 34331165541 | $588.00 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Gasket | D=70MM | 1 | 35111165132 | $3.10 | Shop at ECS Tuning | ||||
| -- | Self-locking collar nut | M8-10 ZNS3 | 2 | 07119905374 | Shop at ECS Tuning | |||||
| 02 | Gasket | D=70MM | 1 | 35111165132 | $3.10 | Shop at ECS Tuning | ||||
| 03 | Self-locking collar nut | M8-10 ZNS3 | 4 | 07119905374 | Shop at ECS Tuning | |||||
| 04 | Secuirng pin with groove | 1 | 01/2000 | 35216754712 | $2.43 | Shop at ECS Tuning | ||||
| 05 | Fuse | B10-ZNS3 | 1 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
| 06 | Brake master cylinder o-ring | 1 | 34311165092 | $3.15 | Shop at ECS Tuning | |||||
| 07 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 08 | Gasket ring | 1 | 34331158929 | $3.15 | Shop at ECS Tuning | |||||
| 09 | Vacuum pipe | 1 | 34302229630 | +core | Shop at ECS Tuning | |||||
| 10 | Vacuum pipe | 1 | 34302229632 | ENDED, +core | Shop at ECS Tuning | |||||
| 11 | Hose clamp | 21,3MM | 4 | 11151726339 | $1.02 | Shop at ECS Tuning | ||||
| 12 | Hose clamp | D=18/20 | 1 | 17221341603 | $1.87 | Shop at ECS Tuning | ||||
| 13 | Bracket | 1 | 34302229617 | ENDED | Shop at ECS Tuning | |||||
| 14 | Cable holder | 1 | 12521747181 | $0.58 | Shop at ECS Tuning | |||||
| 15 | Rubber grommet | 1 | 34302229646 | ENDED | Shop at ECS Tuning | |||||
| 16 | Rubber grommet | 1 | 34301163209 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
