Front brake pipe, DSC for BMW 3 Series E46 318i (2002)

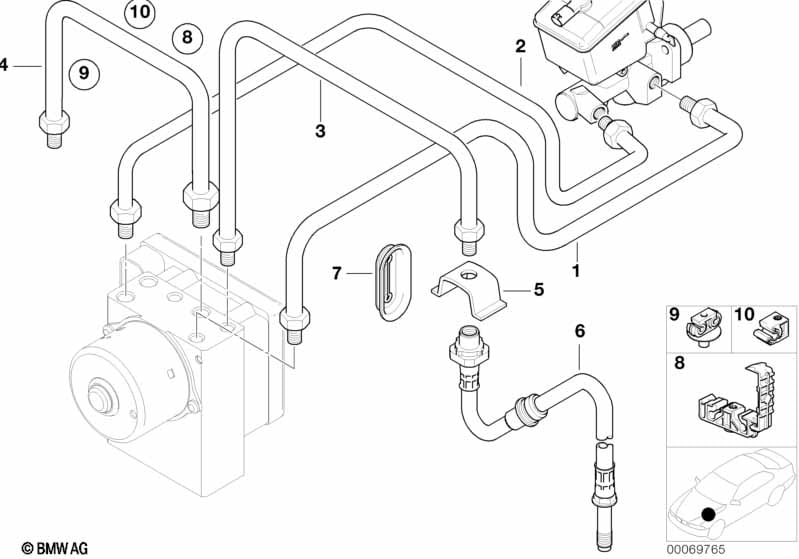

This Front brake pipe, DSC technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pipeline with pressure hose | M12/M12 | 1 | 09/2000 | 34326759218 | $20.83 | Shop at ECS Tuning | |||
| 02 | Pipeline with pressure hose | M12/M12 | 1 | 09/2000 | 34326755801 | $44.31 | Shop at ECS Tuning | |||
| 03 | Pipe | M10/M12-590MM | 1 | 09/2000 | 34326752405 | $4.05 | Shop at ECS Tuning | |||
| 04 | Pipe | M10/M10-2246MM | 1 | 09/2000 | 34326752407 | $9.18 | Shop at ECS Tuning | |||
| 05 | Clip | 2 | 09/2000 | 34341163565 | $0.97 | Shop at ECS Tuning | ||||
| 06 | Brake hose front | 2 | 09/2000 | 34326766966 | $46.95 | Shop at ECS Tuning | ||||
| 07 | Rubber grommet | 2 | 09/2000 | 34331161163 | $1.53 | Shop at ECS Tuning | ||||
| 08 | Bracket, brake pipe, 4-fold | 1 | 09/2000 | 34301165471 | $1.85 | Shop at ECS Tuning | ||||
| 09 | Brake pipe bracket | 2 | 09/2000 | 34301161568 | $1.48 | Shop at ECS Tuning | ||||
| 10 | Brake pipe bracket | 1 | 09/2000 | 34301165382 | $0.90 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318i Front brake pipe, DSC?
- This technical diagram illustrates the Front brake pipe, DSC within the Brakes group for the 3 Series E46 318i produced during 2002. It provides a detailed exploded view of the components, identifying key parts such as the Pipeline with pressure hose (Part #34326759218).
- Which models use the hardware listed in this Front brake pipe, DSC?
- The hardware and components featured in the Front brake pipe, DSC are specific to the 3 Series E46 318i produced during 2002. These technical specifications ensure that parts like the Pipeline with pressure hose (34326759218) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front brake pipe, DSC assembly?
- Each item in the Front brake pipe, DSC corresponds to the numbered list below the illustration. For the 3 Series E46 318i, you can identify the Pipeline with pressure hose by locating its position on the schematic, which then links to the official BMW part number 34326759218 for the Brakes section.
