Rear brake pipe DSC for BMW 3 Series E46 330Cd (2006)

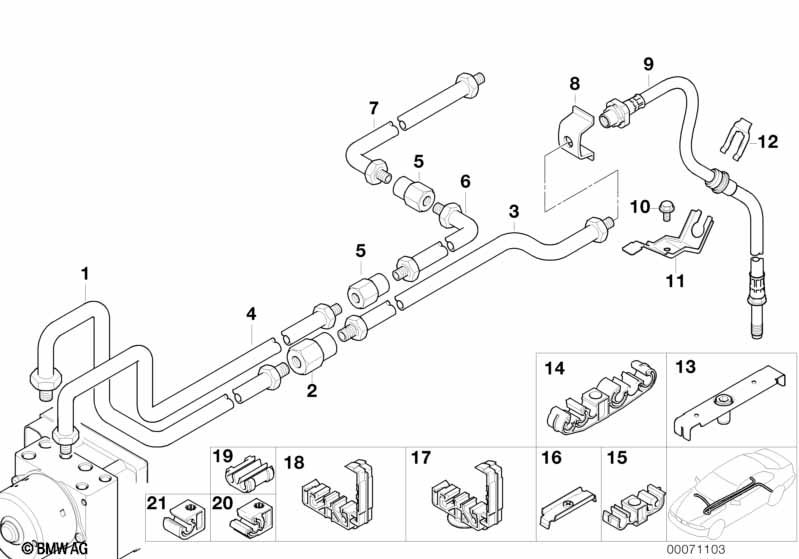

This Rear brake pipe DSC technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Cd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pipe | M12/M12-1527MM | 1 | 09/2000 | 34326754537 | Shop at ECS Tuning | ||||
| 02 | Intermediate piece | M12X1 | 1 | 09/2000 | 34326757285 | $4.08 | Shop at ECS Tuning | |||
| 03 | Pipe | M10/M12-2977MM | 1 | 09/2000 | 34326754861 | $21.02 | Shop at ECS Tuning | |||
| 04 | Pipe | M10/M10-1447MM | 1 | 09/2000 | 34326755623 | $10.03 | Shop at ECS Tuning | |||
| 05 | Intermediate piece | M10X1 | 2 | 09/2000 | 34326757282 | $4.08 | Shop at ECS Tuning | |||
| 06 | Pipe | M10/M10-3075MM | 1 | 09/2000 | 34326755684 | $17.08 | Shop at ECS Tuning | |||
| 07 | Pipe | M10/M10-1206MM | 1 | 09/2000 | 34326766825 | $8.05 | Shop at ECS Tuning | |||
| 08 | Clip | 2 | 09/2000 | 34341163565 | $0.97 | Shop at ECS Tuning | ||||
| 09 | Brake hose rear | 2 | 09/2000 | 34301165174 | $39.55 | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M6X12-U1-8.8 | 2 | 09/2000 | 07119904517 | $0.36 | Shop at ECS Tuning | |||
| 11 | Brake pipe bracket | 2 | 09/2000 | 34301164003 | $4.00 | Shop at ECS Tuning | ||||
| 12 | Retaining spring f brake hose | 2 | 09/2000 | 34306771981 | $0.52 | Shop at ECS Tuning | ||||
| 13 | Bracket | 2 | 09/2000 | 16127195327 | $2.12 | Shop at ECS Tuning | ||||
| 14 | Pipe clip | 2 | 09/2000 | 16121183772 | $1.43 | Shop at ECS Tuning | ||||
| 15 | Brake pipe bracket | 9 | 09/2000 | 34301164005 | $0.68 | Shop at ECS Tuning | ||||
| 17 | Bracket, brake pipe, 5-fold | 2 | 09/2000 | 34301164313 | $2.23 | Shop at ECS Tuning | ||||
| 18 | Bracket, brake pipe, 4-fold | 1 | 09/2000 | 34301165471 | $1.85 | Shop at ECS Tuning | ||||
| 19 | Spacer holder | 1 | 09/2000 | 34306756130 | $0.97 | Shop at ECS Tuning | ||||
| 20 | Brake pipe bracket | 1 | 09/2000 | 34301165382 | $0.90 | Shop at ECS Tuning | ||||
| 21 | Brake pipe bracket | 1 | 09/2000 | 34326855500 | Shop at ECS Tuning |
