Hydro unit DSC/fastening/sensors for BMW 3 Series E46 320Ci (2001)

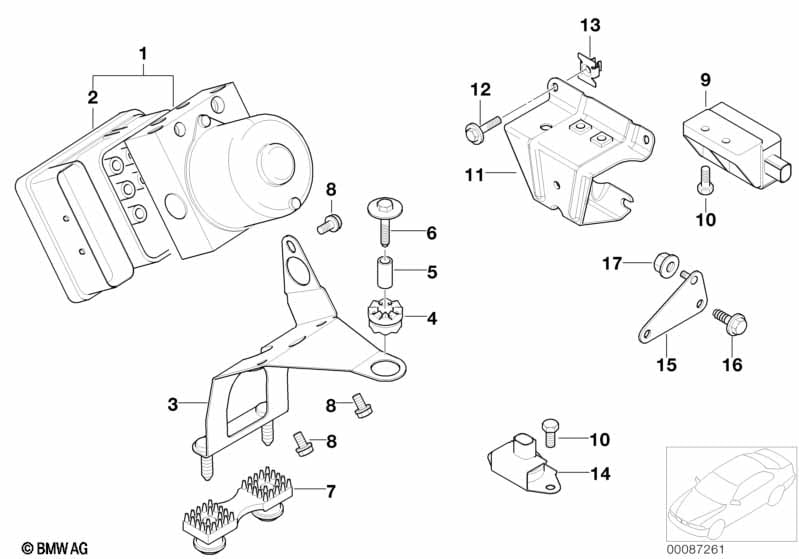

This Hydro unit DSC/fastening/sensors technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hydro unit DSC | 1 | 09/2000 | 09/2001 | 34512460505 | ENDED | Shop at ECS Tuning | |||
| 02 | Repair kit, control unit DSC | 1 | 09/2000 | 09/2001 | 34512460475 | ENDED | Shop at ECS Tuning | |||
| 03 | Bracket hydro unit | 1 | 09/2000 | 09/2001 | 34516752664 | $4.82 | Shop at ECS Tuning | |||
| 04 | Rubber Mounting | 1 | 09/2000 | 09/2001 | 34511162818 | $2.57 | Shop at ECS Tuning | |||
| 05 | Spacer sleeve | ZNS3 | 1 | 09/2000 | 09/2001 | 07146977328 | $1.21 | Shop at ECS Tuning | ||
| 06 | Hex bolt with washer | M8X35-Z2 | 1 | 09/2000 | 09/2001 | 07119901504 | ENDED | Shop at ECS Tuning | ||
| 07 | Rubber Mounting | 1 | 09/2000 | 09/2001 | 34511164650 | $5.13 | Shop at ECS Tuning | |||
| 08 | Hex bolt with washer | M6X12-U1-8.8 | 3 | 09/2000 | 09/2001 | 07119904517 | $0.36 | Shop at ECS Tuning | ||
| 09 | Speed sensor | 1 | 09/2000 | 09/2001 | 34526864094 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M6X20-8.8-ZNS | 2 | 09/2000 | 09/2001 | 07119913016 | $0.60 | ENDED | Shop at ECS Tuning | |
| 10 | Hex bolt | M6X20-8.8-ZNS | 2 | 09/2000 | 09/2001 | 07119913016 | $0.60 | ENDED | Shop at ECS Tuning | |
| 11 | Bracket f.sensor | 1 | 09/2000 | 09/2001 | 34521165384 | $7.43 | Shop at ECS Tuning | |||
| 12 | Hex bolt | M6X16-8.8-ZNS3 | 4 | 09/2000 | 09/2001 | 07119904371 | $0.16 | Shop at ECS Tuning | ||
| 13 | Prestol-cage | M6 ZNS3 | 4 | 09/2000 | 09/2001 | 32411095443 | $1.48 | Shop at ECS Tuning | ||
| 14 | Accelerating sensor | 1 | 09/2000 | 09/2001 | 37146781405 | $102.03 | Shop at ECS Tuning | |||
| 15 | Bracket for DSC sensor | 1 | 09/2000 | 09/2001 | 34521164463 | $9.94 | Shop at ECS Tuning | |||
| 16 | Hex head screw | ST4,8X16-C-Z1 | 2 | 09/2000 | 09/2001 | 07119906265 | ENDED | Shop at ECS Tuning | ||
| 17 | Plastic nut for coarse threaded pin | M6 | 1 | 09/2000 | 09/2001 | 16131176747 | $0.53 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
