Hydro unit DSC/control unit/fastening for BMW 3 Series E46 325xi (2005)

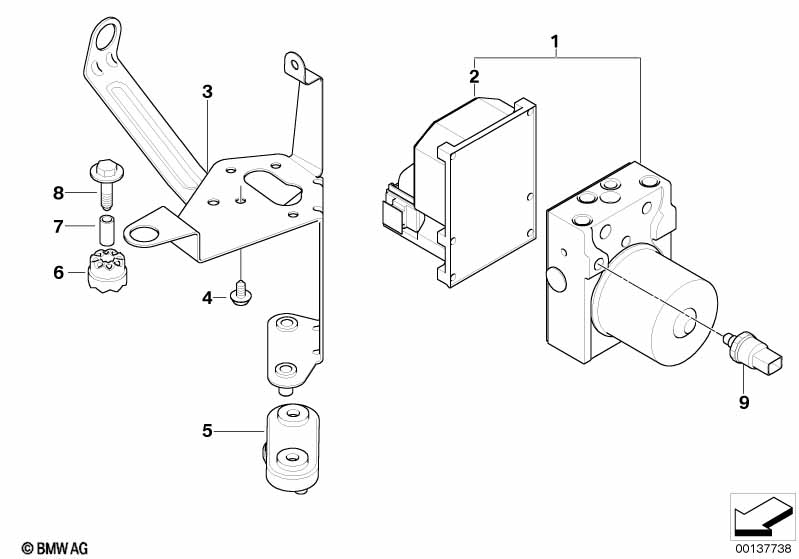

This Hydro unit DSC/control unit/fastening technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hydro unit DSC | 1 | 34516762114 | $2295.77 | ENDED | Shop at ECS Tuning | ||||
| 02 | Repair kit, control unit DSC | 1 | 34522285046 | Shop at ECS Tuning | ||||||
| 03 | Bracket hydro unit | 1 | 34516750966 | $16.09 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M6X12-U1-8.8 | 4 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Rubber Mounting | 1 | 34511164465 | $13.13 | Shop at ECS Tuning | |||||
| 06 | Rubber Mounting | 2 | 34511162818 | $2.57 | Shop at ECS Tuning | |||||
| 07 | Spacer bush | 2 | 34506756769 | $8.45 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M8X35 | 2 | 07119906034 | $1.09 | Shop at ECS Tuning | ||||
| 09 | Pressure sensor | 1 | 34511165467 | $139.16 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 325xi Hydro unit DSC/control unit/fastening?
- This technical diagram illustrates the Hydro unit DSC/control unit/fastening within the Brakes group for the 3 Series E46 325xi produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Hydro unit DSC (Part #34516762114).
- Which models use the hardware listed in this Hydro unit DSC/control unit/fastening?
- The hardware and components featured in the Hydro unit DSC/control unit/fastening are specific to the 3 Series E46 325xi produced during 2005. These technical specifications ensure that parts like the Hydro unit DSC (34516762114) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hydro unit DSC/control unit/fastening assembly?
- Each item in the Hydro unit DSC/control unit/fastening corresponds to the numbered list below the illustration. For the 3 Series E46 325xi, you can identify the Hydro unit DSC by locating its position on the schematic, which then links to the official BMW part number 34516762114 for the Brakes section.
