Brake pipe, front, without ABS for BMW 5 Series E34 525tds (1995)

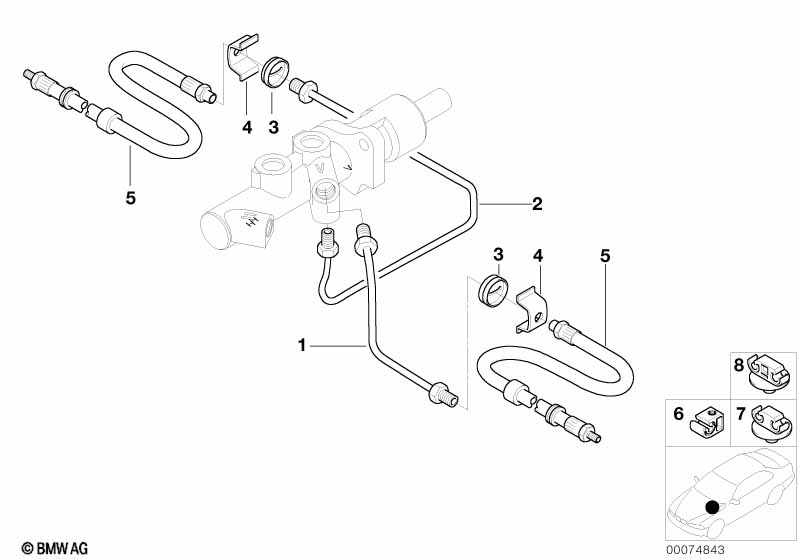

This Brake pipe, front, without ABS technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pipe | M10/M10-448MM | 1 | 34326755306 | $5.83 | Shop at ECS Tuning | ||||
| 02 | Pipe | M10/M10-1920MM | 1 | 34326755643 | $10.03 | Shop at ECS Tuning | ||||
| 03 | Rubber grommet | D=40MM | 2 | 34321154322 | $1.02 | Shop at ECS Tuning | ||||
| 04 | Clip | 2 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 05 | Brake hose | 2 | 34321159891 | $57.58 | Shop at ECS Tuning | |||||
| 06 | Brake pipe bracket | 1 | 34326855500 | Shop at ECS Tuning | ||||||
| 07 | Brake pipe bracket | 3 | 34321160027 | $0.80 | Shop at ECS Tuning | |||||
| 08 | Brake pipe bracket | 3 | 34321159222 | $1.46 | Shop at ECS Tuning |
