Rear brake / brake pad / wear sensor for BMW 5 Series E39 525i (2003)

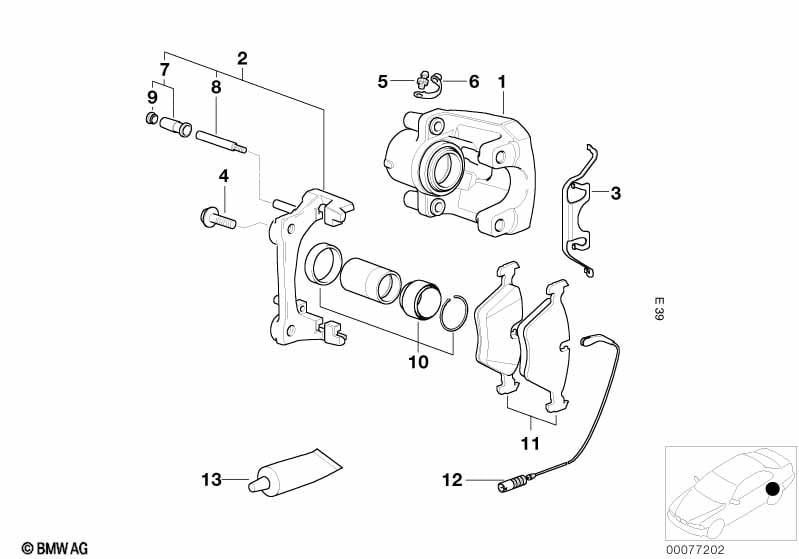

This Rear brake / brake pad / wear sensor technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Caliper housing left | 1 | 34211163649 | $350.83 | Shop at ECS Tuning | |||||
| 01 | Caliper housing right | 1 | 34211163650 | $350.83 | ENDED | Shop at ECS Tuning | ||||
| 02 | Calliper carrier | 2 | 34211163648 | $181.18 | Shop at ECS Tuning | |||||
| 03 | Clip | 2 | 34211163399 | $10.22 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M10X32 | 4 | 34216772885 | $1.75 | Shop at ECS Tuning | ||||
| 05 | Ventilation valve | M10X1 | 2 | 34116768018 | $6.60 | Shop at ECS Tuning | ||||
| 06 | Dust cap | 2 | 34111163435 | $4.20 | Shop at ECS Tuning | |||||
| 07 | Repair kit guide bush | 2 | 34216869617 | Shop at ECS Tuning | ||||||
| 08 | Guiding bolt | 4 | 34111157041 | $20.02 | Shop at ECS Tuning | |||||
| 09 | Protective plug | 4 | 34111154979 | $1.80 | Shop at ECS Tuning | |||||
| 10 | Repair set brake caliper | 2 | 34211164440 | $39.47 | Shop at ECS Tuning | |||||
| 11 | Repair kit, brake pads asbestos-free | 1 | 34216761281 | $88.38 | Shop at ECS Tuning | |||||
| 12 | Brake pad wear sensor | 1 | 34351163066 | $23.35 | Shop at ECS Tuning | |||||
| 13 | Brake pad paste | 3G | 2 | 83192158851 | Shop at ECS Tuning |
