Rear wheel brake / brake disc for BMW 5 Series E39 530i (2003)

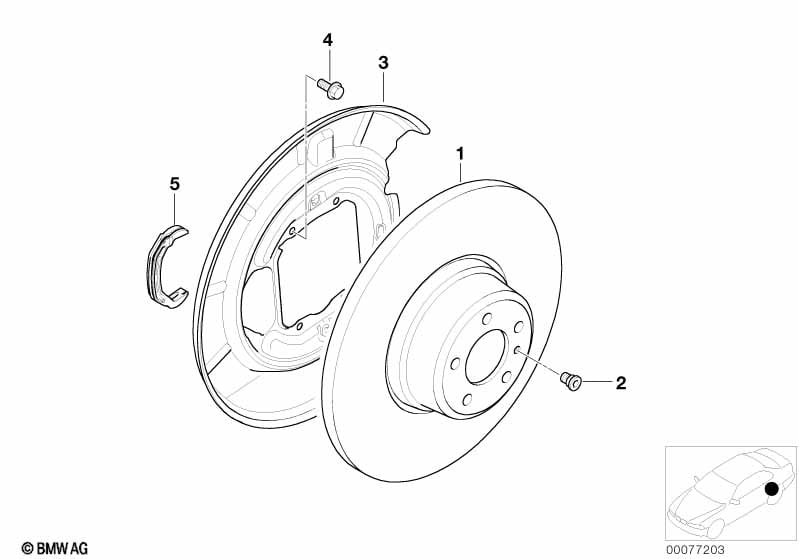

This Rear wheel brake / brake disc technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|

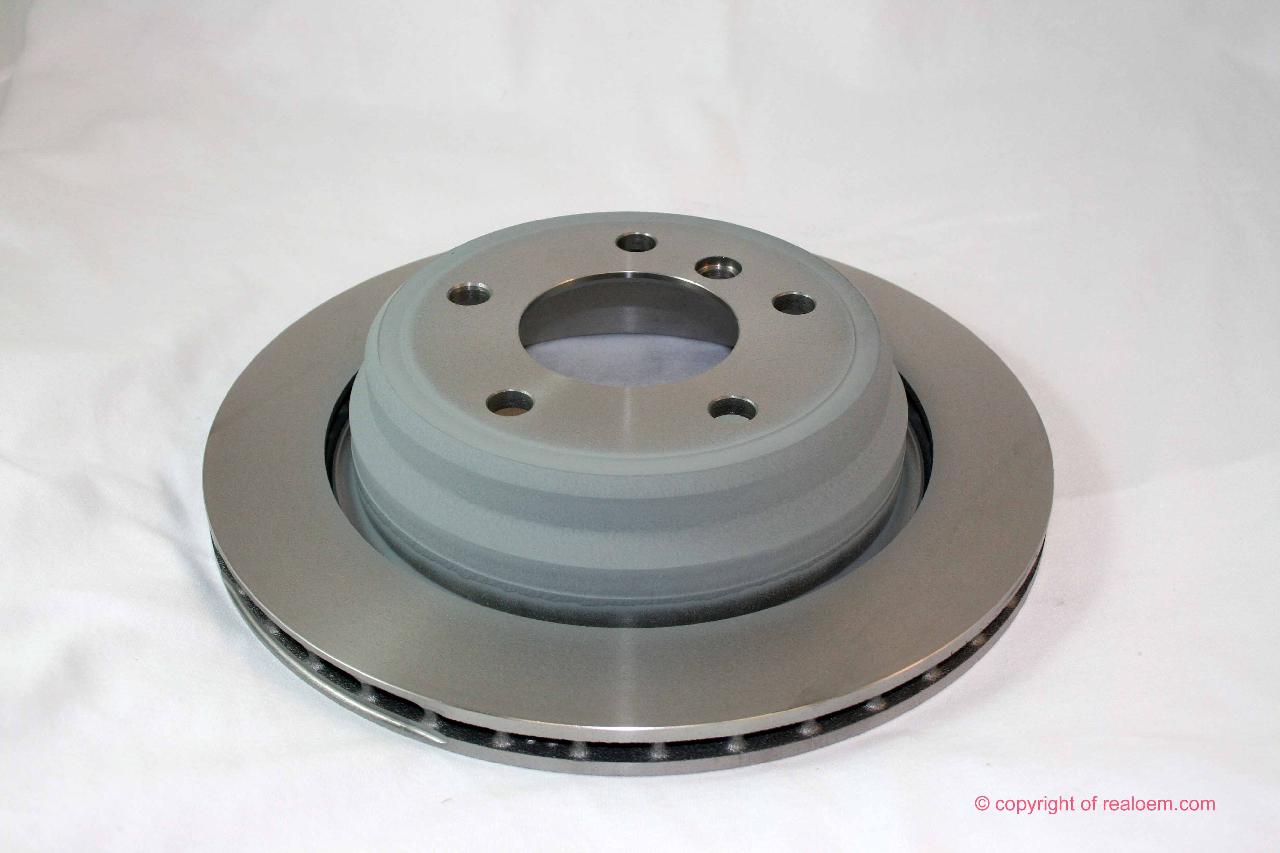

| 01 | Brake disc, ventilated | 298X20 | 2 | 34216767060 | $103.90 | Shop at ECS Tuning | ||||
| 02 | Inner hex bolt | M8X14 | 2 | 34211161806 | $1.38 | Shop at ECS Tuning | ||||
| 03 | Protection plate left | 1 | 34211162775 | $25.18 | Shop at ECS Tuning | |||||
| 03 | Protection plate right | 1 | 34211162776 | $25.18 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M6X12-U1 | 8 | 07119904511 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Gasket | 2 | 34211166260 | $2.52 | ENDED | Shop at ECS Tuning |
