Front wheel brake for BMW M1 E26 M1 (1981)

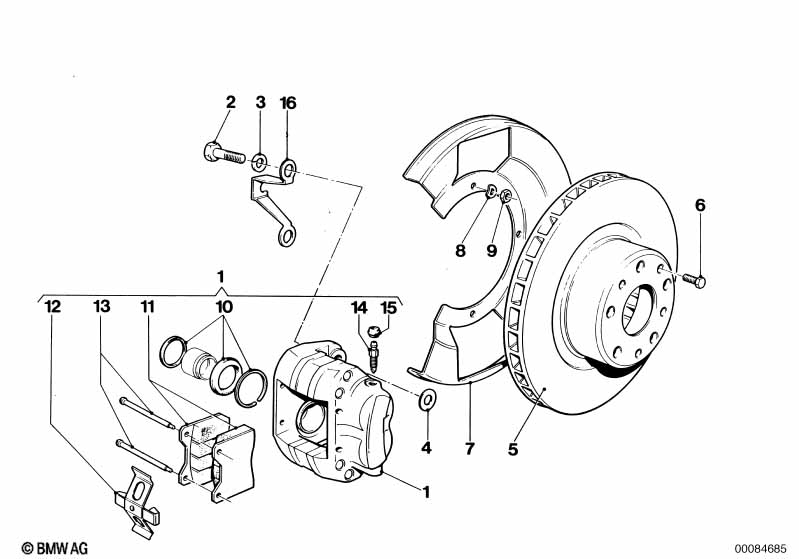

This Front wheel brake technical drawing provides a detailed breakdown of the assembly for the M1 E26 M1. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Caliper with out brake pads left | 1 | 34112161013 | $566.88 | Shop at ECS Tuning | |||||
| 01 | Caliper with out brake pads right | 1 | 34112161014 | $566.88 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M 12X1,5X38 | 4 | 34112161431 | $5.19 | ENDED | Shop at ECS Tuning | |||
| 03 | Wave washer | B12-ZN | 4 | 07119932132 | $0.25 | ENDED | Shop at ECS Tuning | |||
| 04 | Shim | 0,200MM | X | 34112161018 | $0.44 | Shop at ECS Tuning | ||||
| 04 | Shim | 0,300MM | X | 34112161019 | $0.44 | ENDED | Shop at ECS Tuning | |||
| 04 | Shim | 0,400MM | X | 34112161020 | ENDED | Shop at ECS Tuning | ||||
| 04 | Shim | 0,500MM | X | 34112161021 | $0.47 | ENDED | Shop at ECS Tuning | |||
| 04 | Shim | 0,600MM | X | 34112161022 | $0.44 | Shop at ECS Tuning | ||||
| 04 | Shim | 0,800MM | X | 34112161023 | $0.42 | ENDED | Shop at ECS Tuning | |||
| 04 | Shim | X | 34112161024 | ENDED | Shop at ECS Tuning | |||||
| 04 | Shim | X | 34112161025 | ENDED | Shop at ECS Tuning | |||||
| 05 | Brake disk | 300X32 | 2 | 34112160585 | $469.70 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M8X16-10.9-PHR | 6 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 07 | Protection plate | 2 | 34112160039 | $35.43 | ENDED | Shop at ECS Tuning | ||||
| 08 | Wave washer | B6 | 6 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 09 | Hex nut | M6-8-ZNNIV SI | 6 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Repair set brake caliper | ATE | X | 34111158692 | $46.19 | Shop at ECS Tuning | ||||
| 11 | Repair kit, brake pads asbestos-free | TEXTAR T476 | 1 | 34111159261 | $125.20 | Shop at ECS Tuning | ||||
| 12 | Clip | 2 | 34112162650 | $10.12 | Shop at ECS Tuning | |||||
| 13 | Pin | 4 | 34112162651 | $2.71 | Shop at ECS Tuning | |||||
| 14 | Ventilation valve | 4 | 34112162684 | $5.30 | ENDED | Shop at ECS Tuning | ||||
| 15 | Dust cap | 4 | 34111153198 | $6.15 | Shop at ECS Tuning | |||||
| 16 | Left bracket | 1 | 34112161445 | $11.83 | ENDED | Shop at ECS Tuning | ||||
| 16 | Right bracket | 1 | 34112161446 | $11.83 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW M1 E26 M1 Front wheel brake?
- This technical diagram illustrates the Front wheel brake within the Brakes group for the M1 E26 M1 produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Caliper with out brake pads left (Part #34112161013).
- Which models use the hardware listed in this Front wheel brake?
- The hardware and components featured in the Front wheel brake are specific to the M1 E26 M1 produced during 1981. These technical specifications ensure that parts like the Caliper with out brake pads left (34112161013) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front wheel brake assembly?
- Each item in the Front wheel brake corresponds to the numbered list below the illustration. For the M1 E26 M1, you can identify the Caliper with out brake pads left by locating its position on the schematic, which then links to the official BMW part number 34112161013 for the Brakes section.
