ASC hydro unit/control unit/support for BMW 3 Series E46 318i (2004)
This ASC hydro unit/control unit/support technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Dynamic stability control |
S210A=No |
||||||||
| 01 | Hydro unit ASC | 1 | 09/2001 | 34512460441 | ENDED | Shop at ECS Tuning | ||||
| 02 | Repair kit, control unit ASC | 1 | 09/2001 | 34522460438 | Shop at ECS Tuning | |||||
| 03 | Bracket hydro unit | 1 | 09/2001 | 34516752664 | $4.82 | Shop at ECS Tuning | ||||
| 04 | Rubber Mounting | 1 | 09/2001 | 34511162818 | $2.57 | Shop at ECS Tuning | ||||
| 05 | Spacer sleeve | ZNS3 | 1 | 09/2001 | 07146977328 | $1.21 | Shop at ECS Tuning | |||
| 06 | Hex bolt with washer | M6X35 ZNS3 | 1 | 09/2001 | 07146971298 | $0.82 | Shop at ECS Tuning | |||
| 07 | Hex bolt with washer | M6X12-U1-8.8 | 3 | 09/2001 | 07119904517 | $0.36 | Shop at ECS Tuning | |||
| 08 | Rubber Mounting | 1 | 09/2001 | 34511164650 | $5.13 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318i ASC hydro unit/control unit/support?

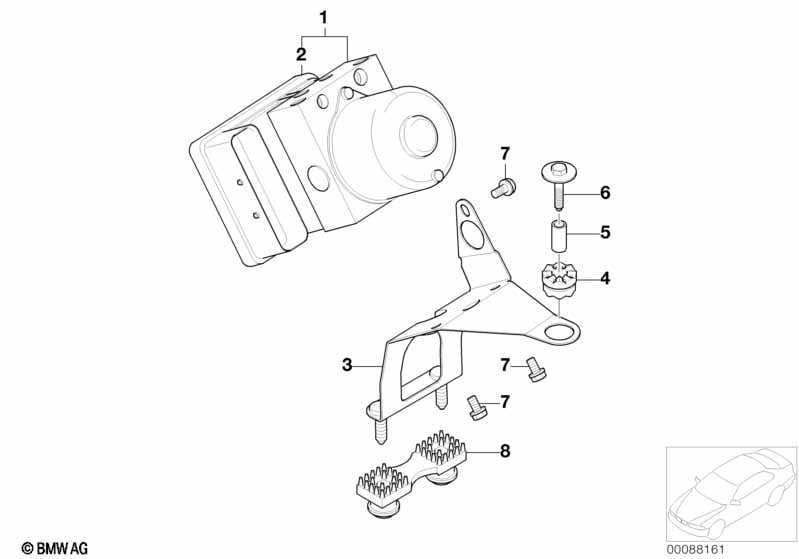

- This technical diagram illustrates the ASC hydro unit/control unit/support within the Brakes group for the 3 Series E46 318i produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Hydro unit ASC (Part #34512460441).
- Which models use the hardware listed in this ASC hydro unit/control unit/support?
- The hardware and components featured in the ASC hydro unit/control unit/support are specific to the 3 Series E46 318i produced during 2004. These technical specifications ensure that parts like the Hydro unit ASC (34512460441) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ASC hydro unit/control unit/support assembly?
- Each item in the ASC hydro unit/control unit/support corresponds to the numbered list below the illustration. For the 3 Series E46 318i, you can identify the Hydro unit ASC by locating its position on the schematic, which then links to the official BMW part number 34512460441 for the Brakes section.
