Hydro unit DSC/fastening/sensors for BMW 3 Series E46 318i (2002)

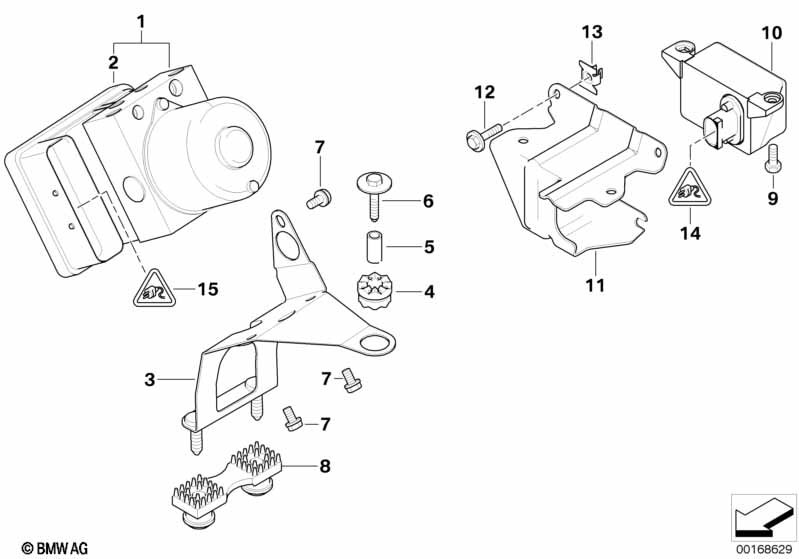

This Hydro unit DSC/fastening/sensors technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M Sports package II |
S338A=Yes |
|||||||||
| 01 | Hydro unit DSC | 1 | 09/2001 | 34512460467 | Shop at ECS Tuning | |||||
| For vehicles with Sequential manual transmission (SMG) and Flat tire indicator and M Sports package II |
S206A=No S251A=No S338A=No |
|||||||||
| 01 | Hydro unit DSC | 1 | 09/2001 | 34512460467 | Shop at ECS Tuning | |||||
| 02 | Repair kit, control unit DSC | 1 | 09/2001 | 34522460435 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package II |
S338A=Yes |
|||||||||
| 02 | Repair kit, control unit DSC | 1 | 09/2001 | 34522460435 | Shop at ECS Tuning | |||||
| 03 | Bracket hydro unit | 1 | 09/2001 | 34516752664 | $4.82 | Shop at ECS Tuning | ||||
| 04 | Rubber Mounting | 1 | 09/2001 | 34511162818 | $2.57 | Shop at ECS Tuning | ||||
| 05 | Spacer sleeve | ZNS3 | 1 | 09/2001 | 07146977328 | $1.21 | Shop at ECS Tuning | |||
| 06 | Hex bolt with washer | M6X35 ZNS3 | 1 | 09/2001 | 07146971298 | $0.82 | Shop at ECS Tuning | |||
| 07 | Hex bolt with washer | M6X12-U1-8.8 | 3 | 09/2001 | 07119904517 | $0.36 | Shop at ECS Tuning | |||
| 08 | Rubber Mounting | 1 | 09/2001 | 34511164650 | $5.13 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M8X16 | 2 | 09/2001 | 07119905528 | $0.62 | Shop at ECS Tuning | |||
| 10 | Speed sensor | 1 | 09/2001 | 34526764018 | $556.54 | Shop at ECS Tuning | ||||
| 11 | Bracket for DSC sensor | 1 | 09/2001 | 34526750817 | $7.67 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M6X16-8.8-ZNS3 | 4 | 09/2001 | 07119904371 | $0.16 | Shop at ECS Tuning | |||
| 13 | Prestol-cage | M6 ZNS3 | 4 | 09/2001 | 32411095443 | $1.48 | Shop at ECS Tuning | |||
| 14 | Universal socket housing uncoded | 6 POL. | 1 | 09/2001 | 61138383300 | $3.47 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Terminal socket MQS ELA | 0.2-0.5 MM² SN | X | 09/2001 | 61131393704 | $0.23 | Shop at ECS Tuning | |||
| -- | Single conductor seal | 0.5-1.0MM² GN | X | 09/2001 | 61138366245 | $0.17 | Shop at ECS Tuning | |||
| 15 | Socket housing | 47 POL. | 1 | 09/2001 | 61136954574 | $7.28 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Terminal socket MQS ELA | 0,35-0,5 MM² | X | 09/2001 | 61136901726 | $0.43 | Shop at ECS Tuning | |||
| -- | Socket contact ELO-Power 5,2x0,63 | 1,0- 2,5 MM² | X | 09/2001 | 61138364846 | $0.50 | Shop at ECS Tuning | |||
| -- | Single conductor seal | 0.5-1.0MM² GN | X | 09/2001 | 61138366245 | $0.17 | Shop at ECS Tuning | |||
| -- | Single conductor seal | 1,0- 2,5 MM² | X | 09/2001 | 61138372628 | $0.50 | Shop at ECS Tuning | |||
