Handbrake lever for BMW MINI R56 LCI Cooper (2010)

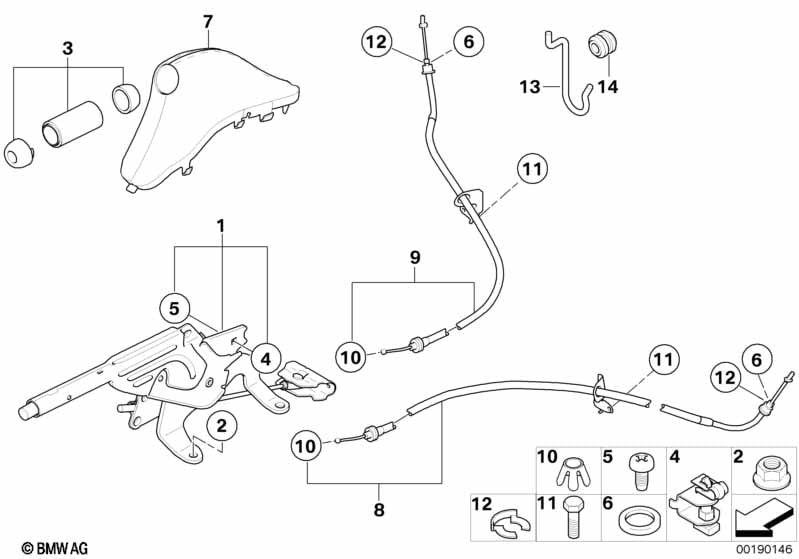

This Handbrake lever technical drawing provides a detailed breakdown of the assembly for the MINI R56 LCI Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Handbrake lever | 1 | 34406774814 | $44.91 | Shop at ECS Tuning | |||||
| 02 | Self-locking collar nut | M8-10 ZNS3 | 3 | 07119905374 | Shop at ECS Tuning | |||||
| 03 | Handbrake handle | 1 | 34406774432 | Shop at ECS Tuning | ||||||
| For vehicles with Chrome Line Interieur |
S345A=Yes |
|||||||||
| 03 | Handbrake handle | CHROMLINE | 1 | 34406774436 | $29.50 | Shop at ECS Tuning | ||||
| 04 | Switch hand brake control | 1 | 61316928205 | $14.76 | Shop at ECS Tuning | |||||
| 05 | Screw | M4 | 1 | 34406765685 | $0.73 | Shop at ECS Tuning | ||||
| 07 | Handbrake lever cover | SCHWARZ | 1 | 34422752940 | $28.96 | Shop at ECS Tuning | ||||
| For vehicles with MINI Baker Street |
P7HTA=Yes |
|||||||||
| 07 | Handbrake lever cover | 1 | 34429265440 | Shop at ECS Tuning | ||||||
| For vehicles with MINI Bayswater |
P7HUA=Yes |
|||||||||
| 07 | Handbrake lever cover | 1 | 34429265441 | Shop at ECS Tuning | ||||||
| For vehicles with John Cooper Works Package |
P7HNA=Yes |
|||||||||
| 07 | Handbrake lever cover | 1 | 06/2012 | 34429225263 | Shop at ECS Tuning | |||||
| For vehicles with MINI 50 Camden |
P7HBA=Yes |
|||||||||
| 07 | Handbrake lever cover | 1 | 34429203325 | Shop at ECS Tuning | ||||||
| 08 | Left hand brake bowden cable | 1 | 34406769955 | $37.39 | Shop at ECS Tuning | |||||
| 09 | Right hand brake bowden cable | 1 | 34406769954 | $37.39 | Shop at ECS Tuning | |||||
| 10 | Fixing clamp | 2 | 34406777401 | $0.61 | Shop at ECS Tuning | |||||
| 11 | Hex bolt | M6X16 10.9 ZNS3 | 2 | 07119907477 | Shop at ECS Tuning | |||||
| 12 | Fuse | 16- ZNS3 | 2 | 07129905860 | $0.40 | Shop at ECS Tuning | ||||
