Power brake unit depression for BMW 3 Series E46 318i (2004)

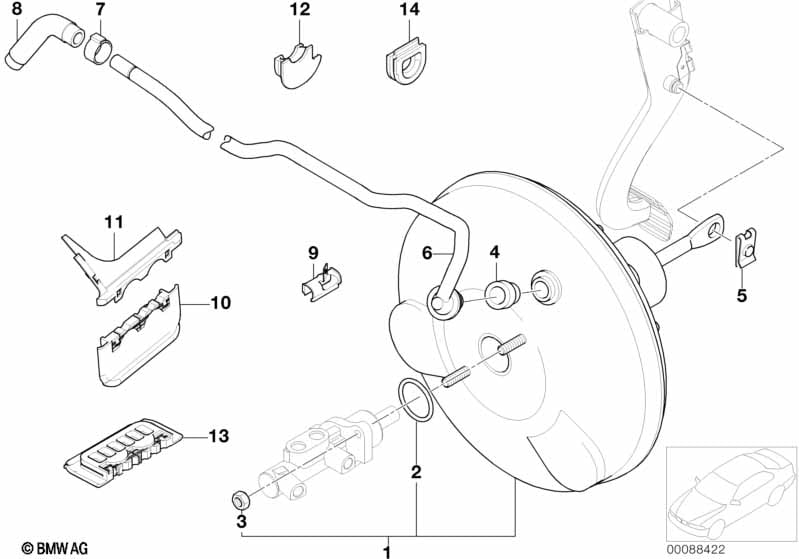

This Power brake unit depression technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | VACUUM PIPE REFER TO MAIN GROUP 11 |
|||||||||
| 01 | Power brake | 1 | 34336779682 | $403.33 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Self-locking collar nut | M8-10 ZNS3 | 3 | 07119905374 | Shop at ECS Tuning | |||||
| 02 | Brake master cylinder o-ring | 1 | 34311160617 | $4.32 | Shop at ECS Tuning | |||||
| 03 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 04 | Gasket | 1 | 34336893085 | Shop at ECS Tuning | ||||||
| 05 | Fuse | B10-ZNS3 | 1 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
| 06 | Vacuum pipe | 1 | 34336756479 | $22.35 | Shop at ECS Tuning | |||||
| 07 | Hose clamp | 21,3MM | 1 | 11151726339 | $1.02 | Shop at ECS Tuning | ||||
| 08 | Hose elbow | 1 | 34336769377 | Shop at ECS Tuning | ||||||
| 09 | Clip, vacuum pipe | 1 | 34336756614 | $0.40 | Shop at ECS Tuning | |||||
| 10 | Rubber grommet | 1 | 34301164314 | $2.75 | Shop at ECS Tuning | |||||
| 11 | Seal, upper part | 1 | 34301164316 | $0.90 | Shop at ECS Tuning | |||||
| 12 | Rubber grommet | 1 | 34301165409 | $2.15 | Shop at ECS Tuning | |||||
| 13 | Rubber grommet | 1 | 34301164261 | $3.42 | Shop at ECS Tuning | |||||
| 14 | Rubber grommet | TRENNWAND | 1 | 12521436024 | $2.38 | Shop at ECS Tuning | ||||
