Power brake unit depression for BMW 3 Series E46 325i (2005)

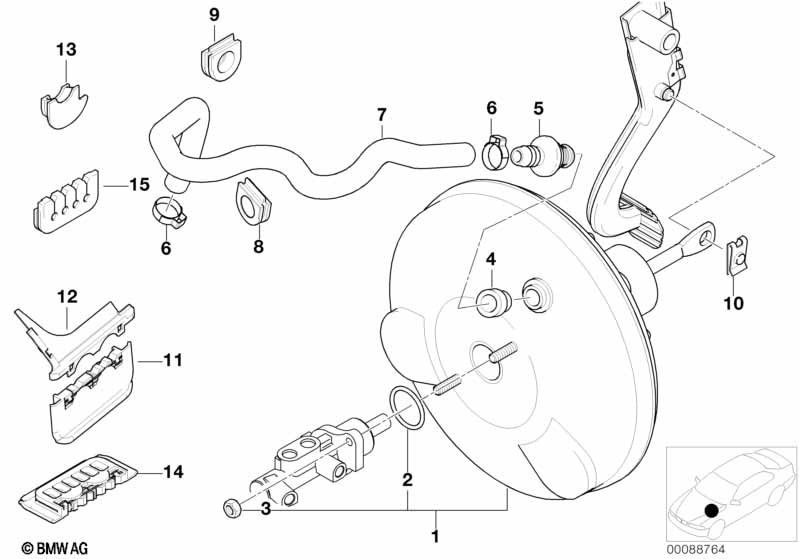

This Power brake unit depression technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | VACUUM PIPE REFER TO MAIN GROUP 11 |
|||||||||
| 01 | Power brake | 1 | 09/2001 | 34336779682 | $403.33 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Self-locking collar nut | M8-10 ZNS3 | 3 | 09/2001 | 07119905374 | Shop at ECS Tuning | ||||
| 02 | Brake master cylinder o-ring | 1 | 09/2001 | 34311160617 | $4.32 | Shop at ECS Tuning | ||||
| 03 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 09/2001 | 07129906196 | $1.60 | Shop at ECS Tuning | |||
| 04 | Gasket | 1 | 09/2001 | 34336893085 | Shop at ECS Tuning | |||||
| 05 | non-return valve | 1 | 09/2001 | 01/2010 | 34331160183 | $7.02 | ENDED | Shop at ECS Tuning | ||
| 05 | Check valve | 1 | 09/2001 | 11667609924 | Shop at ECS Tuning | |||||
| 06 | Hose clamp | 21,3MM | 2 | 09/2001 | 11151726339 | $1.02 | Shop at ECS Tuning | |||
| 07 | Hose elbow | 2 | 09/2001 | 34336751108 | $25.31 | Shop at ECS Tuning | ||||
| 08 | Rubber grommet | TRENNWAND | 1 | 09/2001 | 12521436024 | $2.38 | Shop at ECS Tuning | |||
| 09 | Rubber grommet | 1 | 09/2001 | 34331164514 | $1.50 | Shop at ECS Tuning | ||||
| 10 | Fuse | B10-ZNS3 | 1 | 09/2001 | 07129904567 | $0.40 | Shop at ECS Tuning | |||
| 11 | Rubber grommet | 1 | 09/2001 | 34301164314 | $2.75 | Shop at ECS Tuning | ||||
| 12 | Seal, upper part | 1 | 09/2001 | 34301164316 | $0.90 | Shop at ECS Tuning | ||||
| 13 | Rubber grommet | 1 | 09/2001 | 34301165409 | $2.15 | Shop at ECS Tuning | ||||
| 14 | Rubber grommet | 1 | 09/2001 | 34301164261 | $3.42 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
