Brake pipe, front for BMW 7 Series E65 730d (2005)

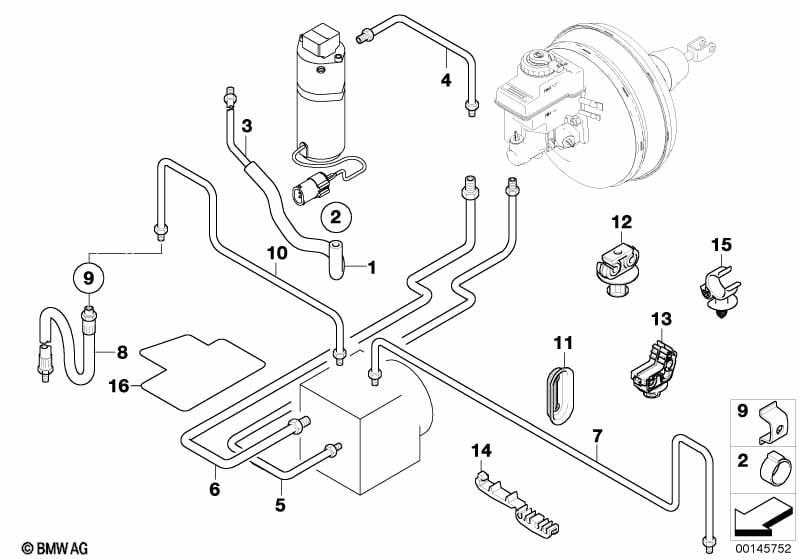

This Brake pipe, front technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 730d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose | 1 | 34536753584 | ENDED | Shop at ECS Tuning | |||||
| 02 | Hose clamp | D=10,8-13,3 | 2 | 32411156956 | $0.62 | Shop at ECS Tuning | ||||
| 03 | Pipe | M12 | 1 | 34536772625 | $25.02 | Shop at ECS Tuning | ||||
| 04 | Pipe | M10/M12 | 1 | 34536772624 | ENDED | Shop at ECS Tuning | ||||
| 05 | Pipe | M12/M12 | 1 | 34326772619 | Shop at ECS Tuning | |||||
| 06 | Pipe | M12/M12 | 1 | 34326772621 | Shop at ECS Tuning | |||||
| 07 | Pipe | M10/M12 | 1 | 34326772594 | $11.65 | Shop at ECS Tuning | ||||
| 08 | Brake hose front | 2 | 34326753610 | $44.96 | Shop at ECS Tuning | |||||
| 09 | Clip | 2 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 10 | Pipe | M10/M12 | 1 | 34326772596 | $16.72 | Shop at ECS Tuning | ||||
| 11 | Rubber grommet | 2 | 34331161163 | $1.53 | Shop at ECS Tuning | |||||
| 12 | Brake pipe bracket | 1 | 34321162878 | $1.95 | Shop at ECS Tuning | |||||
| 14 | Spacer, 4-way | 1 | 11/2006 | 34326777692 | $0.38 | Shop at ECS Tuning | ||||
| 14 | Spacer, 4-way | 2 | 34326777692 | $0.38 | Shop at ECS Tuning | |||||
| 15 | Brake pipe bracket | 1 | 34326756140 | $2.67 | Shop at ECS Tuning |
